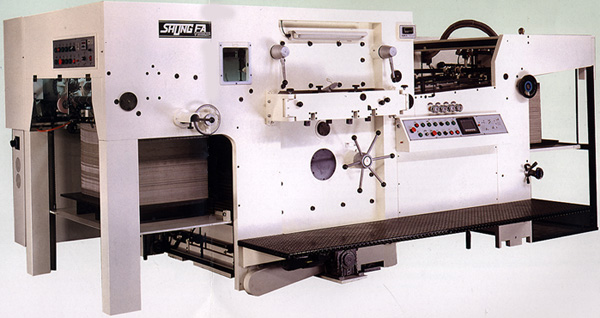

Automatic Cutter & Creaser

Product ID: SF-T110NP

Send Inquiry
Features
  • Main body of The machine adopts cast iron w/alloy which is over FC-25, and The important parts use Fcd-55(Ball-Sized Castiron) The machine body is up to Mechanic construction and designed with CAD/CAM.
  • Control System: The whole machine is automatically controlled by a computer and with a monitor screen showing all items of functions and the operation process. If there's any abnormal situation happened while in operation, The monitor screen will indicate The process and suggest you the way to solve the problem.
  • The design of the machine is up to the expectation of Multi- National standard. The cutting power is of on the theory of being driven by the main motor (DC) and a turbine and crank shaft. And instant cutting power can reach three hundred tons. The machine is installed with safe protection device and the pressure is stable without any incidence of voltage converting.
  • The horizontal digit of cutting machines is balanced on four angles.
  • Precision of cutting needle position can reach to +/- 0.15 m/m.
  • Cutting speed is high up to 6000 sheets per hour, under the number of the ordinary using standard.
  • Regular paper thickness for the machine is 0.3~3.0 m/m.
  • Both wavy and thick papers are applied to the machine. Paper-cutting section SF-T110NP has five sets and SF-TS110 has seven sets of gripping bars and in each roll are eight pieces of grippers. The high of gripper is 12m/m when unfolding.
  • Protection for Operators : An electrical Monitor device is installed to stop the machine once the operator carelessly stretch their hands into the dangerous zone . The machine won't be started if the safety door and the cutting are unpositioned.
  • Controlled by an electronical eye to monitor the process of feeding papers to be cut and then to grip papers, which will automatically stop the machine to be avoid of bad paper products caused by misfeeding of piled-up papers.
  • Both feeding and receiving sections are equipped with an auxiliary sheet pile-up stand to keep the machine punning without stop.
  • To keep oil temperature from being hot-swelling and cold-shrinking incidence and stay in a stable condition, The machine is installed with compressor cooling system to reinforce the lubrication circulation.There's a warning signal in case of low greasing gauge.
  • The adopted electrical parts are generally used in the world and are easy to change and pepair, which are installed with electrical-voltage stabilized to protect automatic controlling device from damage caused by voltage fluctuations.
  • The main parts of this machine use the products made by the advanced countries such as west Europe, United states and Japan.
    • The heare of the machine, main motor (DC) is made by baldor electric co., Ltd. In U.S.A.
    • The quality of the cam Index, made by CAMCO CO., INC. IN U.S.A., is the best in the world.
    • Driving chains are made by JWIS company in west Germany, and which are without errors and discrepancies after a long, endurable use.
    • Both Digit-Controlling system and electronic monitors are made by Japan.
  • The automatic auxiliary paper-receiving stand is operated without stopping machine, which is the patent approved by: Central standary bureau of ministry of economic affairs in Taiwan: New Model NO.57560 patent bureau in PRC: ZL 93 2 02044.5
  • Morevover, Thick papeers operated by push and thin papers by pull are also new patent: Central standard bureau OD ministry of economic affairs in Taiwan: new model NO.66802 patent bureau in PRC: ZL 94 2 24543.1
Model NO / Specification: SF-T110NP
Maximum cutting size 1030 x 730 mm
Minimum cutting size 540 x 335 mm
Thickness of cutting paper 0.3~3 mm
Maximum cutout movements 6,000 shees/hour
Cutting pressure 300 tons
Total weight of machine L4672 x W2750 x H1925 mm
