Fahrion Collets

Product ID: P2

Send Inquiry
The company Fahrion is specialized in manufacturing spindle for high-speed machinery, all kinds of collets and collet chucks in Germany. They newly developed a HP chucks with 100,000 R.P.M and 400 n.m. (HP40) clamping force. This is the world number one clamping force compared to other collet chucks.

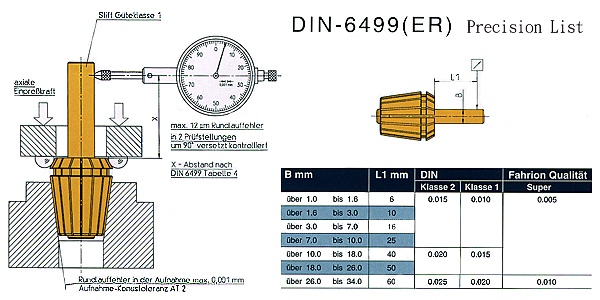

Besides, their super precision ER collets are with best quality at attractive prices. The HP collets are even with higher precision than ER collets.
Computer no. Specification From / up to Price (NT$)
FM4948 - X ER16 - X 1.2 1,090
FM4948 - X ER16 - X 3 - 10 925
FM4949 - X ER20 - X 2 1,060
FM4949 - X ER20 - X 3 - 13 945
FM4950 - X ER25 - X 4 - 16 970
FM4951 - X ER32 - X 3 - 20 1,000
FM4952 - X ER40 - X 4 - 26 1,190
Specifications
  • SER 16 - 10:
    • Size per set: ER 16 - 1.2.
    • 10
    • Quantity per set: 10
    • Price: NTD 9,480
  • SER 20 - 12:
    • Size per set: ER 20 - 2.3.
    • 13
    • Quantity per set: 12
    • Price: NTD 11,350
  • SER 32 - 18:
    • Size per set: ER 32 - 3.4.
    • 20
    • Quantity per set: 18
    • Price: NTD 17,500
