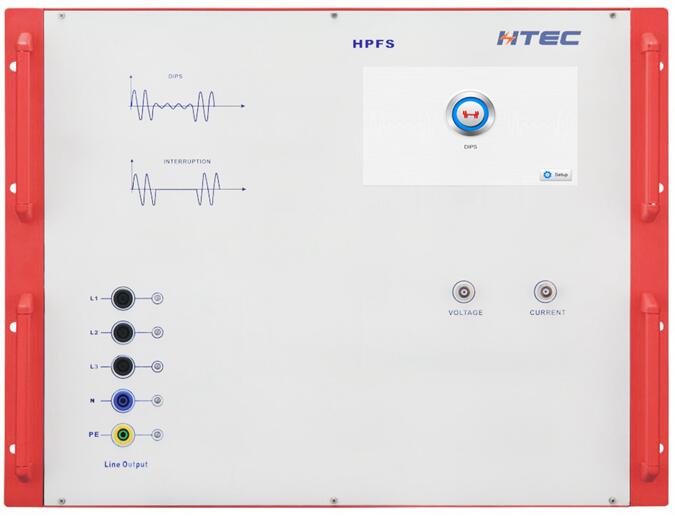

Three phase Voltage Dips & Interrupts Generator

Three phase Voltage Dips & Interrupts Generator

Voltage Dips & Interrupts Generator

Product ID: HPFS

Send Inquiry
Control power supply 85V-264V,47-63Hz Dimension 19″/8U(45×32×49cm)
Remote interface Ethernet RJ45 Weight 15kg
Display 7″/ 800×480
touch screen 24-bit USB For USB memory stick
EUT input voltage Max.250Vac/440Vdc
Line to N EUT input current Single phase:16Aac/25Adc
Three phase: 16A/32A/50A/100A
Interrupt time(AC) 100μs-1000min/0.5period-800periods Interrupt time(DC) 100μs -1000min
Cycle period(AC) 10ms-1000min/1period-800periods Cycle period(DC) 100μs - 1000min
Switching time 1 – 5μs(100Ω load) Dip level AC:0-100% DC:0-120%
Rush current >500A single phase
>1000A three phase Standards level 0%/40%/50%/70%/80%
0 – 100%/120%
(DC programmable power source)
