HCWG / HTSG / HTW

HCWG / HTSG / HTW

SURGE GENERATOR

Product ID: HCWG / HTSG / HTW

Send Inquiry

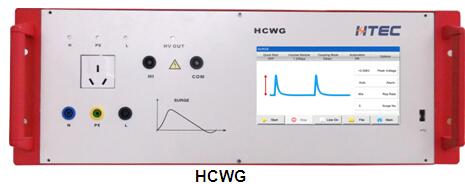

HCWG test system meets all your current and future surge testing requirements. A modular expandable system that grows with your application needs, and various test accessories, including single & three phase CDN (Max current up to 100A) and symmetrical & asymmetrical data signal line CDN are available .
FEATURES
 Max output voltage 5.0kV/7.0kV/10.0kV
 Telecom wave 10μs/700μs is expandable(15Ω&40Ω)
 Combination wave: 1.2μs/50μs(2Ω)
 High quality components,small in size & light weight
 Data line CDN ,according to IEC 61000-4-5,drawing 11-14
 Circuit measurement of Peak voltage and current
 Color touch screen interface,easy to operate
 According to latest IEC&GB standards
 Compliance and certified test system
 Single phase16A & three phase 32/ 50/100A CDN, full automatic control
Certificate
  • IEC/EN

Main Products

EMC test system
