Features:
1. Shaft forced type, increase the quality of the concrete and efficiency.
2. Liner plate is made of high quality chromium, harder and longer lasting.
3. Reinforced body frame, make machine securely in position.
4. Additional two Limited-Switches for running safety
5. Brand name electrical parts, machine running more smoothly.
6. Can be modified upon request, such as expend the tracks or increase unloading height

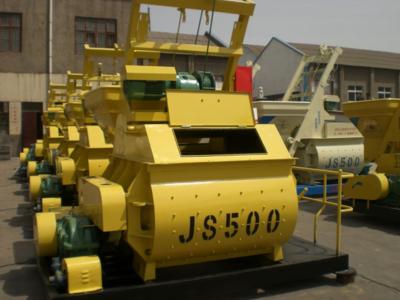

Double horizontal shafts forced concrete mixer JS 500/750/1000/1500
Model JS 500 JS 750 JS 1000 JS 1500
Discharge capacity 500 L 750 L 1000 L 1500 L
Charge capacity 800 L 1200 L 1600 L 2400 L
Mixing time 35-45 S 35-45 S 35-45 S 35-45 S
Rated output 25-30m3/h 37-45m3/h over 50m3/h 65-75m3/h
Main motor power 18.5KW 30KW 2x18.5/37KW 2x30KW
Hoisting 5.5KW 7.5KW 13KW 15KW
Water pump power 1.1KW 1.1KW 3KW 3KW
Maximum size of aggregate 60/80mm 60/80mm 60/80mm 60/80mm
Overall dimension(mm)( L x W x H ) (T) 2786*3003*151 365*2805 *2630 4500 *2400 *2165 520
1. Shaft forced type, increase the quality of the concrete and efficiency.
2. Liner plate is made of high quality chromium, harder and longer lasting.
3. Reinforced body frame, make machine securely in position.
4. Additional two Limited-Switches for running safety
5. Brand name electrical parts, machine running more smoothly.
6. Can be modified upon request, such as expend the tracks or increase unloading height
Double horizontal shafts forced concrete mixer JS 500/750/1000/1500
Model JS 500 JS 750 JS 1000 JS 1500
Discharge capacity 500 L 750 L 1000 L 1500 L
Charge capacity 800 L 1200 L 1600 L 2400 L
Mixing time 35-45 S 35-45 S 35-45 S 35-45 S
Rated output 25-30m3/h 37-45m3/h over 50m3/h 65-75m3/h
Main motor power 18.5KW 30KW 2x18.5/37KW 2x30KW
Hoisting 5.5KW 7.5KW 13KW 15KW
Water pump power 1.1KW 1.1KW 3KW 3KW
Maximum size of aggregate 60/80mm 60/80mm 60/80mm 60/80mm
Overall dimension(mm)( L x W x H ) (T) 2786*3003*151 365*2805 *2630 4500 *2400 *2165 520
Certificate
- ISO9001
Main Products
concrete mixer, crusher, belt conveyor
