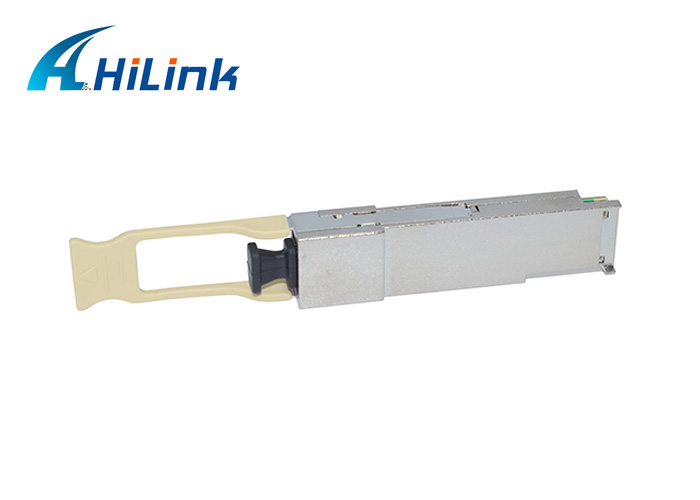

MPO 40G 850NM 100M QSFP SR4
Hilink 40G 850nm OM3 100m QSFP SR4 Optical Transceiver uses an 12 fiber MPO connector.
PRODUCT DESCRIPTIONFeatures:
  QSFP+ MSA, SFF-8436 compatible
  MPO Connector
  Distance up to 200m over OM4 Fiber
  VCSEL array transmitter and PIN array receiver
  Electrically Hot-pluggable
  Single 3.3V Power Supply
  Power Dissipation< 1.5W
  Digital Diagnostics Monitoring Interface
  Operating Case Temperature: 0-70℃
Applications:
Hilink 40GBASE-SR4
 Server-Server Clusters, Super-computing interconnections
 40G Applications backplane
 InfiniBand SDR, DDR and QDR applications
Item Hilink QSFP SR4 Description
Transceiver form factor QSFP+
Transmission speed 40GE
Center wavelength (nm) 850
Standards compliance 40GBASE-SR4
Connector type MPO/PC (8-strand or 12-strand, type B, female connector)
Applicable cable and maximum transmission distance
Multimode fiber (OM3): 0.1 km


Multimode fiber (OM4): 0.15 km

Transmit power (dBm) -7.6 to +2.4
