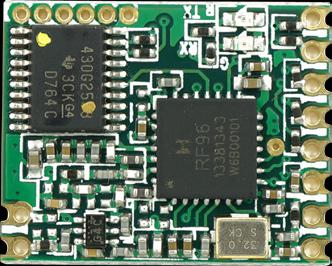

HM-TRLR-S
Application:
AMR Auto Meter Reading, Network Communication, Remote Control, Mine Monitoring, Industrial Control, etc.
Parameter:
Frequency: 433/470/868/915MHz (± 20MHz Provide for setting)
Modulation Mode: LoRa/FSK/GFSK/OOK
Output Power: 2~20dBm(Provide for setting)
Sensitivity: -139dBm (Max)
Tx Current: 130mA (+20dBm)
Rx Current: 16mA
Standby Current: 1.5μA
Frequency Deviation: 10~50kHz
Receive Bandwidth: 42~166kHz
Data Rate: 1200~115200Kbps(Provide for setting)
Interface: 8N1/8E1/8O1 TTL
UART (Scalable exteriorRS232RS485)
Communication Distance: > 5000m@LoRa
Antenna Impedance: 50Ω
Operation Temperature: -20~+70
Power Supply Mode: DC2.4~3.6V
Module Size: 20X16X2mm
AMR Auto Meter Reading, Network Communication, Remote Control, Mine Monitoring, Industrial Control, etc.
Parameter:
Frequency: 433/470/868/915MHz (± 20MHz Provide for setting)
Modulation Mode: LoRa/FSK/GFSK/OOK
Output Power: 2~20dBm(Provide for setting)
Sensitivity: -139dBm (Max)
Tx Current: 130mA (+20dBm)
Rx Current: 16mA
Standby Current: 1.5μA
Frequency Deviation: 10~50kHz
Receive Bandwidth: 42~166kHz
Data Rate: 1200~115200Kbps(Provide for setting)
Interface: 8N1/8E1/8O1 TTL
UART (Scalable exteriorRS232RS485)
Communication Distance: > 5000m@LoRa
Antenna Impedance: 50Ω
Operation Temperature: -20~+70
Power Supply Mode: DC2.4~3.6V
Module Size: 20X16X2mm
Certificate
- FCC\ETSI\RoHS
