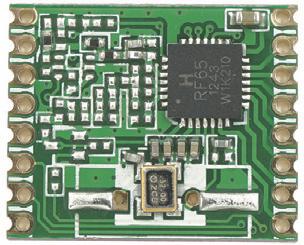

RFM65
RF Advantages:
Long communication distance, strong interference resistance, high cost-effective
Support host computer software configuration and parameter validation, very intuitive and quick, short development cycle.
Meet the requirements of mainstream wireless applications.
No output power reduction at a supply voltage down to 1.8V.
Application:
Wireless Lighting Control, House and Building Automation, Wireless
Alarm and Security System, Smart Home, smart Security, etc.
Parameter:
Frequency: 433/868/915MHz
Modulation Mode: FSK/GFSK/OOK
Sensitivity: -120dBm
Data Rate: 300Kbps
Rx Current: 16mA
Standby Current: 0.1μA
Interface: SPI
Antenna Impedance: 50Ω
Operation Temperature: -40~+85
Power Supply Mode: DC 1.8~3.6V
Module Size: 19.7X16mm
Long communication distance, strong interference resistance, high cost-effective
Support host computer software configuration and parameter validation, very intuitive and quick, short development cycle.
Meet the requirements of mainstream wireless applications.
No output power reduction at a supply voltage down to 1.8V.
Application:
Wireless Lighting Control, House and Building Automation, Wireless
Alarm and Security System, Smart Home, smart Security, etc.
Parameter:
Frequency: 433/868/915MHz
Modulation Mode: FSK/GFSK/OOK
Sensitivity: -120dBm
Data Rate: 300Kbps
Rx Current: 16mA
Standby Current: 0.1μA
Interface: SPI
Antenna Impedance: 50Ω
Operation Temperature: -40~+85
Power Supply Mode: DC 1.8~3.6V
Module Size: 19.7X16mm
Certificate
- FCC\ETSI\RoHS
