Description:
• Unique design of Light Guide Panel - gives good performance of lighting
• High-quality of branded chip - provide excellent lumens
• Detail assurance - bring reliable trust to our clients worldwide

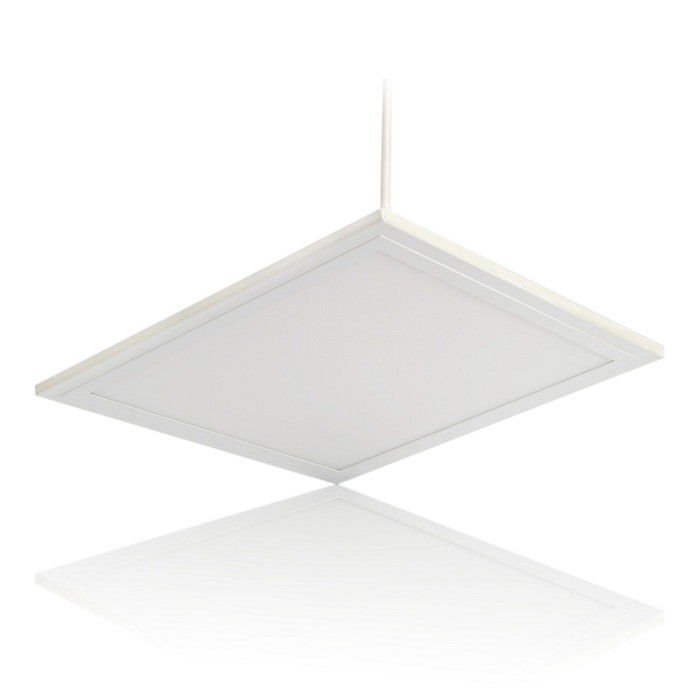

Model No.: ILU-PL-W-3030-18
Power: 18W±1W
Power supply: 180-260Vac/100~240Vac 50/60Hz
Total delivered lumens: 1458LM
Colour temperature: NW 3000K NW 4000K CW 5500K/6000K
CRI: >80
Dimension(MM): 296*296*11mm
PF: >0.9
Type of LED: Mainland Sanan SMD2835 20x35mil Chip/48pcs
Light Guide Panel brand: Japan Mitsubishi
Material: Aluminum
Beam Angle: 120°
Driver: NON-CE, CE, TUV, TUV NO FLICKER, UL available
Life-span: 80,000hours
Dimmable: Dali/0~10V/PWM/Traic Optional
Finishes: white, silver
Power supply unit: external driver
IP/IK/Glow-wire: IP20/IK06/650℃, IP65 optional
Temp./Humidity: Working: -20℃~40℃ Storage:
• Unique design of Light Guide Panel - gives good performance of lighting
• High-quality of branded chip - provide excellent lumens
• Detail assurance - bring reliable trust to our clients worldwide
Model No.: ILU-PL-W-3030-18
Power: 18W±1W
Power supply: 180-260Vac/100~240Vac 50/60Hz
Total delivered lumens: 1458LM
Colour temperature: NW 3000K NW 4000K CW 5500K/6000K
CRI: >80
Dimension(MM): 296*296*11mm
PF: >0.9
Type of LED: Mainland Sanan SMD2835 20x35mil Chip/48pcs
Light Guide Panel brand: Japan Mitsubishi
Material: Aluminum
Beam Angle: 120°
Driver: NON-CE, CE, TUV, TUV NO FLICKER, UL available
Life-span: 80,000hours
Dimmable: Dali/0~10V/PWM/Traic Optional
Finishes: white, silver
Power supply unit: external driver
IP/IK/Glow-wire: IP20/IK06/650℃, IP65 optional
Temp./Humidity: Working: -20℃~40℃ Storage:
