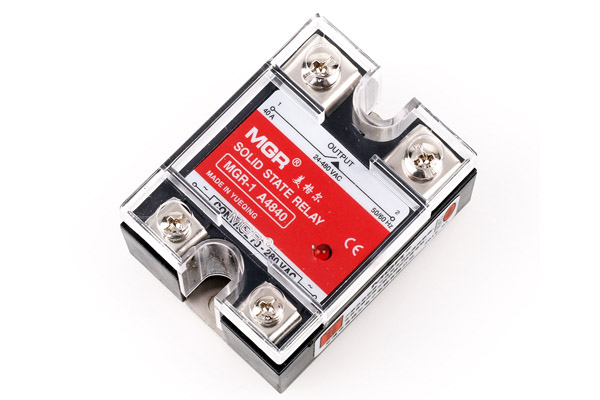

MGR-1A48-40 AC Solid State relay
Type meaning
MGR - 1: [Single phase] - A: [Control voltage 85-265VAC] - 48 : [Operating voltage 24-480VAC] - 40 : [40A]
Description
· Rated current: 40Amps
· Rated voltage: 24-480VAC
· Back-to-Back SCR output for commercial-heavy industry-level applications, reliable performance
· "Ultra low”input current
· Low output off-leakage current
· Low output on-State voltage drop
· With zero startup (resistive load) or randomstarting (inductive load or phase control)
· With LED lights indicating
· R-C contains the standard output buffer
· Transparent protective cover provides users with additional protection
Attentions
· Load 10A, must install radiator; 40A or more, must install fan cooler or water cooler.
· When using inductive loads, be sure to parallel a varistor on output, the value of varistor should be 1.6-1.9 times the load voltage.
