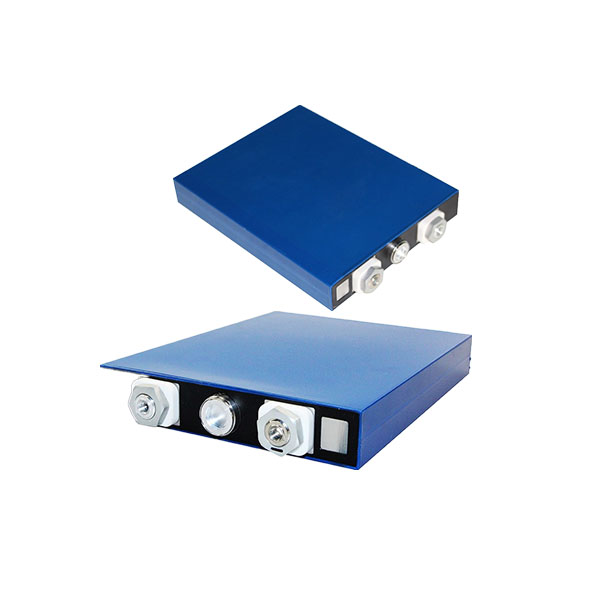

Long Service Life Lifepo4 Lithium Battery 24V 80Ah Wind Power System
Long Service Life Lifepo4 Lithium Battery 24V 80Ah Wind Power System
Product ID: QH-LFPPACK-002
Send Inquiry
Nominal Voltage 24V
Nominal Capacity(0.5C,25℃) 80Ah
Weight(Approximate) 18.2kg
Dimension(Length*Width*Height) 365*185*195MM
Standard Discharge@25℃
Max. Continuous Current 80A
Cut-off Voltage 18.8V
Standard Charge
Charge Voltage 27.4V
Recommended Charge Current 20A
Charge Time 5 hours
Resistance and rates
Internal Resistance ≤120mΩ
Self-discharge rate ≤4% per Month
General Features
BMS specs 10A
Nominal Capacity(0.5C,25℃) 80Ah
Weight(Approximate) 18.2kg
Dimension(Length*Width*Height) 365*185*195MM
Standard Discharge@25℃
Max. Continuous Current 80A
Cut-off Voltage 18.8V
Standard Charge
Charge Voltage 27.4V
Recommended Charge Current 20A
Charge Time 5 hours
Resistance and rates
Internal Resistance ≤120mΩ
Self-discharge rate ≤4% per Month
General Features
BMS specs 10A
Certificate
- CE
- FCC
- RoHS
- ISO9001. Chemical substances
- UN38.3 IEC62133.
