woodworking machine/Veneer Splicing Machine

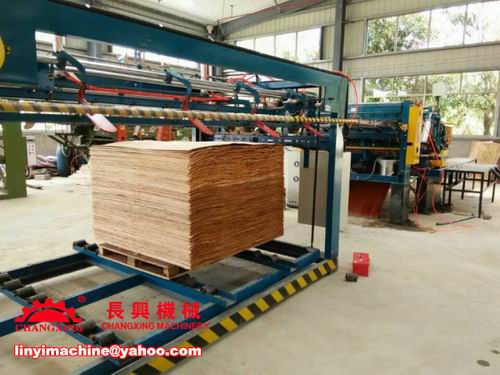

Core veneer jointer(composor) machine is suitable for core veneer joining together in plywood production line and it can process different sizes of core veneer (poplar, eucalyptus wood, etc.) with high strength thread and hot melt adhesive connection as one whole body, then facilitate the subsequent stages of production of plywood line .The whole process is automatic and only one operator is enough.
Product Parameter
Model CXCT-4 CXCT-6 CXCT-8
Working Length(mm) 600-2560 600-2560 60-1300
Working Width(mm) 600-1270 1620-1857 1950-2560
Working Thickness(mm) 1.0-4.0 1.2-4.0 1.2-4.0
Knife Length(mm) 1350 1950 2700
Feeding Spped(m/min) 32 28 24
Electric Power Requirement(kw) 22 24 28
Area Occupied 3.2X12m2 4.4X12m2 5.5X10m2
Machine Weight(kgs) 7000 10000 12500
Shipping Volume(m3) 60 90 110
Core veneer jointer(composor) machine is suitable for core veneer joining together in plywood production line and it can process different sizes of core veneer (poplar, eucalyptus wood, etc.) with high strength thread and hot melt adhesive connection as one whole body, then facilitate the subsequent stages of production of plywood line .The whole process is automatic and only one operator is enough.
Product Parameter
Model CXCT-4 CXCT-6 CXCT-8
Working Length(mm) 600-2560 600-2560 60-1300
Working Width(mm) 600-1270 1620-1857 1950-2560
Working Thickness(mm) 1.0-4.0 1.2-4.0 1.2-4.0
Knife Length(mm) 1350 1950 2700
Feeding Spped(m/min) 32 28 24
Electric Power Requirement(kw) 22 24 28
Area Occupied 3.2X12m2 4.4X12m2 5.5X10m2
Machine Weight(kgs) 7000 10000 12500
Shipping Volume(m3) 60 90 110
Certificate
- ISO
Main Products
Woodworking Machine,Veneer Splicing Machine,Blockboard Joint Machine
