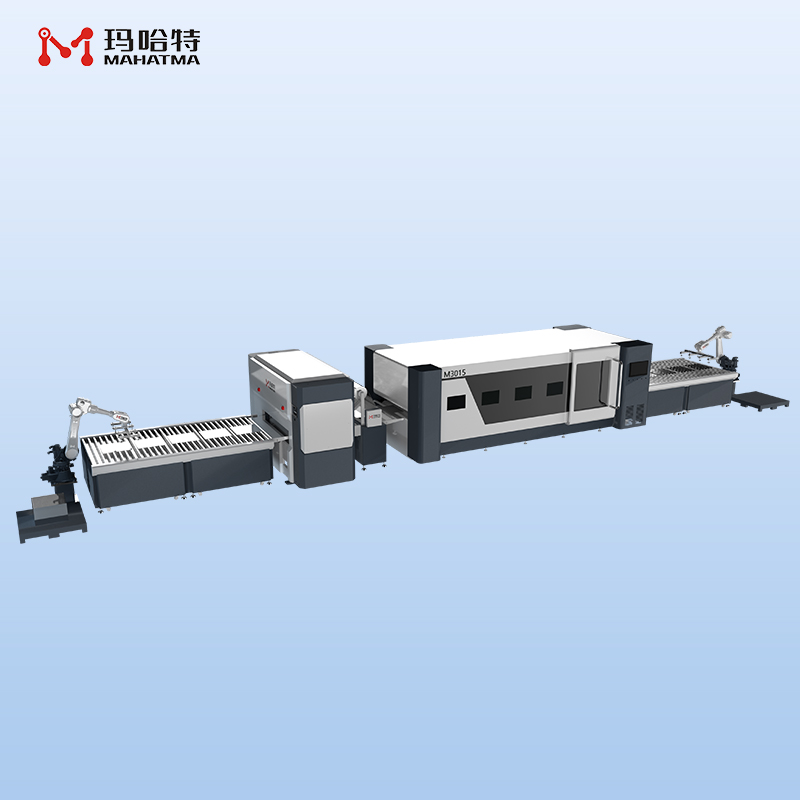

Laser Cutting equipment with shear line for metal sheets
High Power Laser Cutting equipment and Metal Laser Cutting Machine manufacturer in China
Product ID: MHTS-1300M
Send Inquiry
Shear Line Technical features
Model MHTS-1300M
Maximum Width(mm) 1300-2500
Maximum Thickness(mm) 3/6/10
Roller Diameter(mm) 60/80/120
Leveling Accuracy(mm/m2) 0.5
Maximum Weight(t) 5/10/15/20
Automatic Hydraulic Feeding Trolley Yes
Speed(m/min) 0-20
Inner Diameter(mm) ∮508- ∮610
Maximum Outer Diameter(mm) Φ1500
Numbers of Roller 15
Controller Semi-automatic
Feeding Accuracy(mm) ±0.2
Air Pressure(kg/cm²) 5
Rack expansion mode Hydraulic
Servo Motor Servo + Reducer
Rack motor(kw) 5
Feeding direction left→right
Feed line height(mm) 850±50
Voltage(v) AC380v
Optional 1. Blanking manipulator 2. Blanking joint robot 3. Automatic film laminating machine 4. Automatic stacking lifting table 5. Blanking platform
Model MHTS-1300M
Maximum Width(mm) 1300-2500
Maximum Thickness(mm) 3/6/10
Roller Diameter(mm) 60/80/120
Leveling Accuracy(mm/m2) 0.5
Maximum Weight(t) 5/10/15/20
Automatic Hydraulic Feeding Trolley Yes
Speed(m/min) 0-20
Inner Diameter(mm) ∮508- ∮610
Maximum Outer Diameter(mm) Φ1500
Numbers of Roller 15
Controller Semi-automatic
Feeding Accuracy(mm) ±0.2
Air Pressure(kg/cm²) 5
Rack expansion mode Hydraulic
Servo Motor Servo + Reducer
Rack motor(kw) 5
Feeding direction left→right
Feed line height(mm) 850±50
Voltage(v) AC380v
Optional 1. Blanking manipulator 2. Blanking joint robot 3. Automatic film laminating machine 4. Automatic stacking lifting table 5. Blanking platform
