Details:
Performance range:
Size:1-18inches
Capacity:3-5000m3/h
Head:5-95m
Material:Cr27,Cr28,CD4MCu,rubber liner material
Seal：packing seal, expeller seal, mechnical seal.
Design features

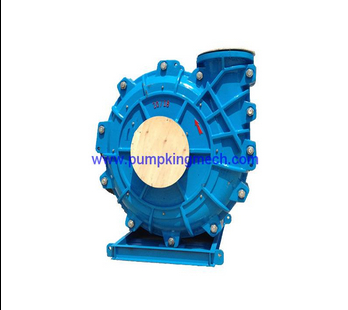

Type HAD pump are cantilevered, horizontal, centrifugal slurry pumps. They are suitable for delivering low density slurries for metallurgical, mining, coal and building material departments. The shaft seal adopts both gland seal and centrifugal seal.
Type HAD pumps operate in high speed with small volumes to save floor area. The frame plates have changeable, wear-resistant metal liners rubber liners and the impeller are made of wear-resistant metal or rubber.
Shaft sleeve
A large percentage of duties allow the use of the centrifugal seal which eliminates the need of sealing water.
Gland shaft seal
A packed gland type shaft seal is also available and can be fitted with a low flow or a full flow flush seal water arrangement.
Shaft and bearing assembly
A large diameter shaft with a short
Performance range:
Size:1-18inches
Capacity:3-5000m3/h
Head:5-95m
Material:Cr27,Cr28,CD4MCu,rubber liner material
Seal：packing seal, expeller seal, mechnical seal.
Design features
Type HAD pump are cantilevered, horizontal, centrifugal slurry pumps. They are suitable for delivering low density slurries for metallurgical, mining, coal and building material departments. The shaft seal adopts both gland seal and centrifugal seal.
Type HAD pumps operate in high speed with small volumes to save floor area. The frame plates have changeable, wear-resistant metal liners rubber liners and the impeller are made of wear-resistant metal or rubber.
Shaft sleeve
A large percentage of duties allow the use of the centrifugal seal which eliminates the need of sealing water.
Gland shaft seal
A packed gland type shaft seal is also available and can be fitted with a low flow or a full flow flush seal water arrangement.
Shaft and bearing assembly
A large diameter shaft with a short
