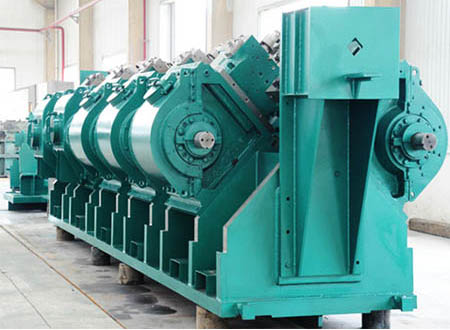

Wire Rolling Mill
Parameter of steel wire rod production line:
Raw material : From 60*60 up to 200*200 billets
Finished products :(5.5~16mm)
Annual capacity :50,000 up to 500,000tons
Equipment Performance
The form of mill: cantilever roller loop mill
The quantity of frame: 10 (1~3 frame are Φ200 mill, 4~10 frame are Φ150 mill)
Design method: top crossed 45°, 10 frame concentrated transmission.
Size of roll loop:
Φ200 mill: Φ210.5~Φ189.5 x Φ120.65 x 72 mm
Φ150 mill: Φ158.8~Φ142.9 x Φ87,76 x 62 mm
Strength of rolling:
Φ200 mill: 152 kN
Φ150 mill: 107.8 kN
Space of rolling:
Transmission motor: DC motor
Power: 1600kW x three or 4500kW AC inverter motor
Rotating speed: 100 ~ 1300 r/m
Working rotary speed: 900 ~ 1100 r/m
Raw material : From 60*60 up to 200*200 billets
Finished products :(5.5~16mm)
Annual capacity :50,000 up to 500,000tons
Equipment Performance
The form of mill: cantilever roller loop mill
The quantity of frame: 10 (1~3 frame are Φ200 mill, 4~10 frame are Φ150 mill)
Design method: top crossed 45°, 10 frame concentrated transmission.
Size of roll loop:
Φ200 mill: Φ210.5~Φ189.5 x Φ120.65 x 72 mm
Φ150 mill: Φ158.8~Φ142.9 x Φ87,76 x 62 mm
Strength of rolling:
Φ200 mill: 152 kN
Φ150 mill: 107.8 kN
Space of rolling:
Transmission motor: DC motor
Power: 1600kW x three or 4500kW AC inverter motor
Rotating speed: 100 ~ 1300 r/m
Working rotary speed: 900 ~ 1100 r/m
