Product Description

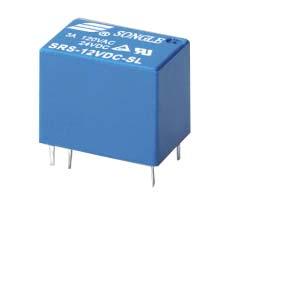

Home appliance control relay size:15.7x10.6x12.4
Product Feature
contact form 1a 1c rated load 1a 120VAC 3A 250VAC CONTACT resistance 50m electrical life100000 mechanical life 10000000
Product Specification/Models
coil rated voltage 3-24VDC coil power 0.36W 0.45W pick-up voltage 75% drop-out voltage 5%
Application
ambient temerpature -40~=85 coil & contacts 500VAC/1min Insulation resistance 100M
Other Information
mounting form p.c.b. weight 4g safety approval :CQC
Home appliance control relay size:15.7x10.6x12.4
Product Feature
contact form 1a 1c rated load 1a 120VAC 3A 250VAC CONTACT resistance 50m electrical life100000 mechanical life 10000000
Product Specification/Models
coil rated voltage 3-24VDC coil power 0.36W 0.45W pick-up voltage 75% drop-out voltage 5%
Application
ambient temerpature -40~=85 coil & contacts 500VAC/1min Insulation resistance 100M
Other Information
mounting form p.c.b. weight 4g safety approval :CQC
Certificate
- UL CQC TUL
