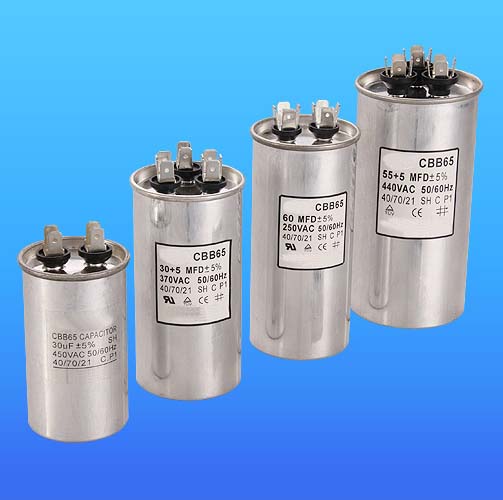

Aluminum can capacitor
Technical parameter:
Executive standards UL810, IEC/EN60252-1, EIA-456-A, JIS C 4908
Climate type: -40 to 70/85°C
Rated frequency(fN): 50/60Hz
Rated Capacitance: 1-80μF
Tolerance: ±5% other on customers requirement
Rated Voltage: 250-500Vac
Dissipation factor tgδ≤≤2.0×10-3(100Hz)
Overloading
Maximum permissible voltage:1.1UN
Maximum permissible current:1.3IN
Insulation voltage test:
T-T: 2Un 2S no breakdown
T-C: 2500V 2S no breakdown
Executive standards UL810, IEC/EN60252-1, EIA-456-A, JIS C 4908
Climate type: -40 to 70/85°C
Rated frequency(fN): 50/60Hz
Rated Capacitance: 1-80μF
Tolerance: ±5% other on customers requirement
Rated Voltage: 250-500Vac
Dissipation factor tgδ≤≤2.0×10-3(100Hz)
Overloading
Maximum permissible voltage:1.1UN
Maximum permissible current:1.3IN
Insulation voltage test:
T-T: 2Un 2S no breakdown
T-C: 2500V 2S no breakdown
Certificate
- UL
- TUV
- VDE
- CE
- RoHS
