![balancing machine YYQ-1000A](product6.jpg)

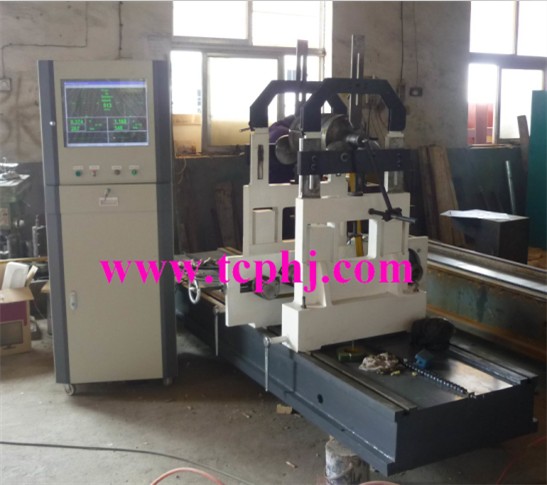

balancing machine YYQ-1000A
Widely used in electric motors, fan/blower, diesel engine, farm machine, textile machiner, printing machine, paper-making machine, water pump, automoible etc
Warranty period:
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
Technical Data:
Weight of workpiece(kg): 10-1000
Max diameter of workpiece(mm):1500
Distance between two support bearing(mm): 150-2600
Range of Journal diameter(mm): 20-240
Balancing speed(r/mm): 180-2500
Min achievable residual unbalance(g.mm/kg): =90
Drive powder(KW): 5.5
Warranty period:
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
Technical Data:
Weight of workpiece(kg): 10-1000
Max diameter of workpiece(mm):1500
Distance between two support bearing(mm): 150-2600
Range of Journal diameter(mm): 20-240
Balancing speed(r/mm): 180-2500
Min achievable residual unbalance(g.mm/kg): =90
Drive powder(KW): 5.5
Certificate
- CE
