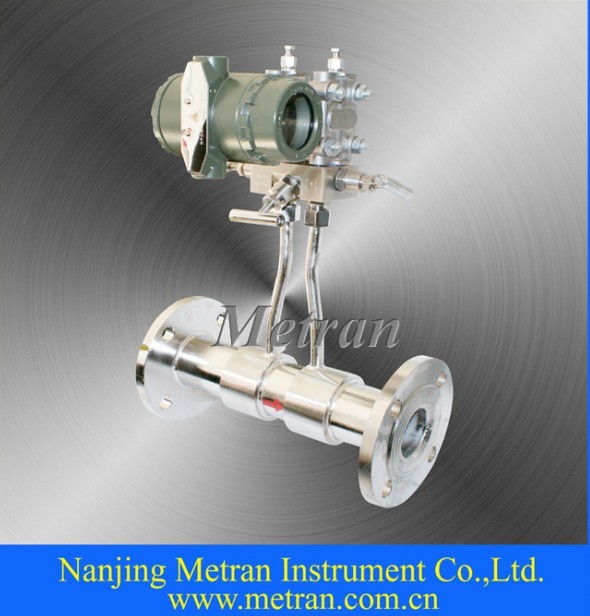

LUGB Intelligent Vortex Flow meter

The series of Vortex Flowmeter is based on Carmen Vortex Principle, which adopts piezoelectric crystal as testing components. It is a new kind of stress detecting vortex flowmeter. It has the advantages of wide range rate, high accuracy, low pressure loss, good medium generality, pulse signal output proportional to flow, convenient to connect with computer etc. The detector probe of sensor and the vortex generating body are installed separately, and the high temperature resistant piezoelectric crystal doesnt contact with medium, so the instrument is simple structure, good generality, and high stability.

LUGB series Vortex Flowmeter sensor can be used to detect and measure the flow of all kinds of gas, fluid and steam.

LUGB flowmeter sensor can be used to match with our companys MT6000 series flow totalizer. It also can match with computers and sensors of temperature, pressure, or density to compose high accuracy mass flow or heat flow detecting and measuring system.

Technical Parameters

Measured medium: all kinds of gas, fluid and steam

Nominal diameter:20-300mm (ontology-type) 300-1000mm (Insertion type)

Operating environment: Environment temperature -40°c~55°c Relative humidity:≤90%

Nominal Pressure: 1.6Mpa 2.5Mpa 4.0Mpa

Measurement Range: gas and steam: 4.5-45m/s fluid: 0.45-4.5 m/s

Measurement Accuracy: ±0.5% ±1%

Output Signal: Pulse signal (current or voltage pulse) LUGB series- A

Current signal (4-20mA) LUGB series-B

Safety Protection: intrinsically-safe explosion-proof type explosion-proof level: ia II CT1-6

Anti-corrosion type (Suitable for measuring corrosive medium)

Power Supply: DC24V

Mounting Method: Flange-collection-type, flange- Card-type, insert-type
