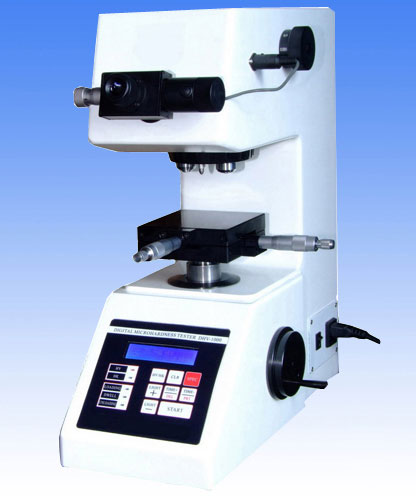

Micro Vickers Hardness Tester SMV-1000Z, is precision hardness testing machines integrate the technology of optics, mechanics and computer. It is applicable to measure the hardness value of ferrous metals, non-ferrous metals, IC thin sections, coatings, ply-metals; Glass, ceramics, agate, precious stones, and it can be tested about the depth and the trapezium of the carbonized layers and quench hardened layers.
Technical Specifications
Testing Forces (0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80) N
(10, 25, 50, 100, 200, 300, 500, 1000) gf
Turret Automatic
Testing forces loading switch Automatic ( loading / dwell / unloading )
Magnification of the Microscope 200×, 400 ×
Dwell Time of the Test Force (5-60)s
Min. resolution of the Testing Drum Wheel 0.0625um
Testing range 1HV—2967HV
Dimension of the XY stage 100 × 100 mm
Travel of the XY stage 25 × 25mm
Max. height of the specimen 70 mm
Instrument throat 95mm
Light source Halogen light source
Accuracy Standard conforms to EN-ISO 6507
Power Supply 110V/220V,60/50Hz
Dimension & Net Weight 425 × 245 × 490 mm & 30Kg
Standard delivery XY stage ; Thin specimen anvil ; Fork-shaped anvil ; Fine wire anvil; Level; Adjustable screw ; 10 ×eyepiece ; 20x and 40x objective; Micro Vickers hardness blocks (high and medium)
Technical Specifications
Testing Forces (0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80) N
(10, 25, 50, 100, 200, 300, 500, 1000) gf
Turret Automatic
Testing forces loading switch Automatic ( loading / dwell / unloading )
Magnification of the Microscope 200×, 400 ×
Dwell Time of the Test Force (5-60)s
Min. resolution of the Testing Drum Wheel 0.0625um
Testing range 1HV—2967HV
Dimension of the XY stage 100 × 100 mm
Travel of the XY stage 25 × 25mm
Max. height of the specimen 70 mm
Instrument throat 95mm
Light source Halogen light source
Accuracy Standard conforms to EN-ISO 6507
Power Supply 110V/220V,60/50Hz
Dimension & Net Weight 425 × 245 × 490 mm & 30Kg
Standard delivery XY stage ; Thin specimen anvil ; Fork-shaped anvil ; Fine wire anvil; Level; Adjustable screw ; 10 ×eyepiece ; 20x and 40x objective; Micro Vickers hardness blocks (high and medium)
