GSM Alarm System

Product ID: Home Alarm System

Send Inquiry

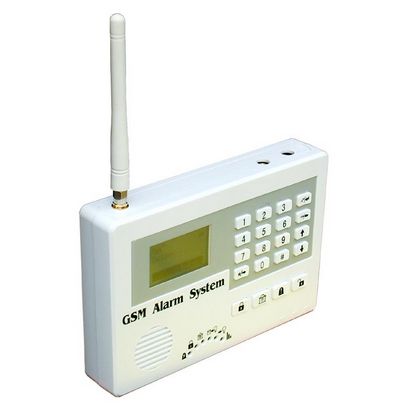

The GSM Alarm System S110 with multi-functions. It integrated GSM Module inside, and almost all useful functions and features of the alarm systems in the worldwide markets. Also it with innovative and experienced functions and features to meet the required and potential demands.

The GSM Alarm System S110 is a new security protection solution. It is special for home, house and office and other applications. It based on Wireless GSM Communication network; it can alert you by SMS and calling.

The GSM Alarm System S110 supports two way voice communication and wiretap by intelligent technology. It can answer the incoming call as well as dial out to the others. It is very useful for user to create voice communication or listen in the houses.



The GSM Alarm System S110 supports Watchdog, once the sensor in this zone triggered in the preset time, will not alarm, if the sensor hasn’t been triggered in the preset time, will alarm. It is useful for monitoring elders, children, and the person on-duty.

The GSM Alarm System S110 equips with two output relay, one is link-output relay, special for switch on or off appliance while the system alarm, another is independent output relay, it can be switched on or off by SMS commands..


The GSM Alarm System S110 equips with LCD display entire operation menu, all operations and settings are visual and intuitive!


The GSM Alarm System S110 supports GSM Jammer interference!


The GSM Alarm System S110 with user friendly design idea, all operations and settings are visual and intuitive!


What you need is a SIMCard which supports Call ID function.


What advantages of the S110?

1. Two-way Voice communication or wiretap are available;

2. LCD displays the entire setup menu;

3. Armed, Partial Armed(At House or Stay), Disarmed, SOS are available;

4. Armed delay, alarm delay, siren work or not, more other functions are Programmable by user;

5. Watchdog,24Hours Zone, SOS zone are available;

6. Using ICON to display armed, Partial Armed, Disarmed, Power status, Siren status and GSM Signal status.

7. Auto-detect and report, GSM Signal Jammer alarm, SMS Switch is available.


Functions & Features of the GSM Alarm System:

Ø GSM Frequency: Dual-Band(900/1800MHz), Quad-Band is optional(850/900/1800/1900Mhz) ;

Ø Supports armed, Partial armed(At House or Stay) or disarmed, SOS by remote control or mainframe keyboard;

Ø Supports armed, disarmed, inquiry mainframe status, switch on or off relay output by SMS Commands;

Ø Automatically send SMS Alert and dial to the pre-set cell phone when any sensor had been triggered;

Ø Equips with 8 Wired zones, the attribute (Normal/At House or Stay mode) and Zone Name is editable, NC NO EOL is programmable;

Ø Equips with 16 Wireless Zones, zone attribute (Normal/At House or Stay mode) and Zone Name is editable;

Ø 3 X 24-Hour zones for smoke and gas leakage sensor,1XWatchdog zone for monitoring elder or child, 1XSOS zone for emergency help;

Ø Supports 3 SMS Alert Numbers and 5 Calling alert numbers and 20 Alarm Records for owner review;

Ø Supports Timer for automatically arm or disarm the system;

Ø Supports armed delay to give enough time to you go out the home, the delay time is editable by user;

Ø Equips with 1 Alarm-Link output relay, once the system triggered, the output will switch on for 4minutes;

Ø Equips with 1 independent output relay, it can be switch on or off by SMS Commands. This is very useful for remote switch on light or off while you’re in another city in the night;

Ø The Keypad can use as a dialer, the functions like the Cell phone;

Ø The external power failure & recovery alert function is optional ;

Ø Supports wiretap through the internal microphone;

Ø Supports internal Speaker to special user for two-way voice communication;

Ø It is Compatible with PT2262/2264 and PT2242 wireless IC;

Ø Standby internal rechargeable battery which can last 12 hours;

Ø Based on the GSM communication network and Operation Menu Display technology, apply to wide range situations.

Ø More programmable functions and features are available.
