Introduction

Aplus Industrial Panel Monut monitor series offers flexible options for TFT LCD Panel, touchscreen, signal interface and chassis mounting. The series with standard integrated metal housing and aluminum front bezel, any customized design available.

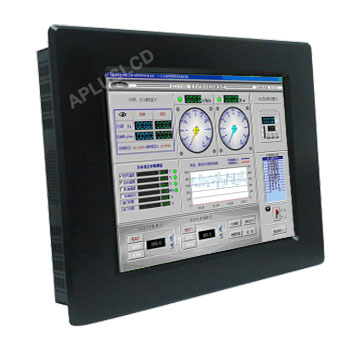

AP-17IPPCT1-R is 17 industrial monitor with 5 wire resistive touch screen, SAW/IR/Capactive touch screen optional, with 6mm aluminum front bezel with 8pcs mounting hardware, IP65 Front compliance, widely use in all kinds of different application like ATM,Kiosk, marine, military, medical, transportation, and other industrial application.

Specifications

Model No.
AP-17IPPCT1-R

Description
17" Industrial LCD Monitor with 5 Wire resistive touch screen, TFT LCD 250nits,1920x1080 full HD

Size
17’’

Display Area (mm)
337.92 (H)x 270.336 (V) mm

Pixel Pitch (mm)
0.264(H) x 0.264(V)

Resolution
1280x1024

Brightness
300 cd/m2

Contrast Ratio
800 : 1(typ)
