SpecificationsEG2000 Electronic Engine Governor Controller
Good quality and competitive price
The EG2000 provides both an adjustable idle speed and ramp, for controlling engine smoke, vibration and warm-up.

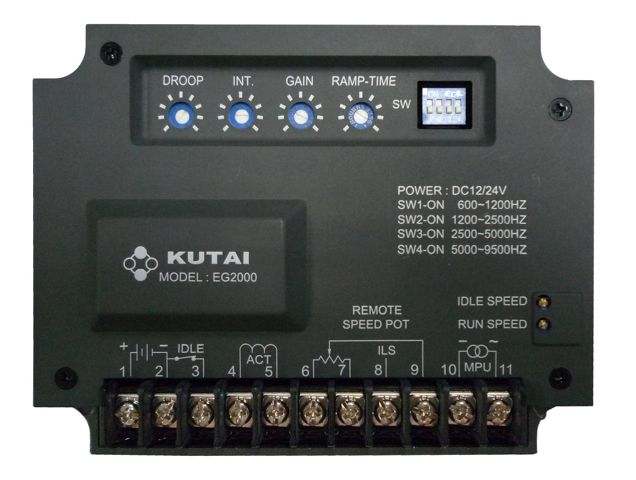

EG2000
Universal Electronic Engine Governor Controller
The EG2000 is a universal generator governor / engine speed controller equipped with Smoke Limiting, & Idle Speed. Suitable for diesel, gas and natural gas engines with Built-in & Non-Built-in PTs Pumps, also can be used with Low Current, Electric over Hydraulic Oil Pumps Type Governor Actuators.
Features
· Works on a wide ranges of MPU/flywheel frequencies
· 15 Amp Max Output
· Suitable for all types of diesel and Gas engines
· High Sensitivity and stable at Low Frequency Variations
· Moisture, vibration, and rust protected, Epoxy encapsulated electronic
· For Use With Isochronous Generators & Automatic Paralleling PLC controls
· Idle Speed Adjustment and connections for a Remote Speed POT
pecifications
EG2000 Operating Voltage
10 VDC to 30 VDC
Output Current
From 0.5 Amp to 15 Amp
Frequency Range
600 Hz ~ 9500 Hz (PMG Signal)
Idle Speed Frequency
Adjustable From 30~85% of normal
Speed Band
± 0.25% at Steady State
Temp. Stability
Between -40~85 °C Better than ± 0.5%
Remote Speed Adjustment Range (2 mode)
Adjustable Range ± 5% with 5 KΩ potentiometer
Ramp Time
3 to 20 Sec. Adjustable
Operation Environment
Operation Temp. : -40~85 °C
Storage Temp. : -40~85 °C
Relative Humidity : Maximum 95%
Vibration : 3G @ 100~2 KHz
DIP Switch Description
SW1 : ON 600~1200 Hz
SW2 : ON 1200~2500 Hz
SW3 : ON 2500~5000 Hz
SW4 : ON 5000~9500 Hz
Governor Controls
DROOP : Droop Rate Adjustment
GAIN : MPU Output Gain Adjustment
Int. : Engine Stability Adjustment
RAMP-TIME : Soft Start Adjustment
SPEED : Speed Adjustment
IDLE : Idle Speed Adjustment
Dimensions
147.0 (L) x 114.0 (W) x 40.0 (H) mm
Weight
690 g ±2%
