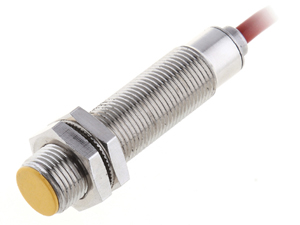

High temperature inductive sensor LR12X series

Product ID: LR12X-W

Send Inquiry
High temperature sensor LR12X series

High temperature up to 120℃, widely used in steel, metallurgy industry.

Mounting:  Flushed, No-flushed
SN:  2mm, 4mm
 Housing size:  M12*1*43mm
 Supply Voltage:  10…30V DC
 Output:  NPN/PNP NO/NC
Temperature drifts: ≤±10%
Load current: ≤100mA
Hysteresis: 1…20%
Repeat accuracy: ≤3%
 Frequency:  1500Hz,1000Hz
Ambient temp. : -25 to +120degrees
Ambient RH: 35-95%
 Protection degree:  IP67
 Housing material:  Nickel-copper Alloy
Connection: Silica Gel
Certificate
  • ISO
  • CE
  • UL
  • RoHS

Main Products

Inductive sensor, Capacitive sensor, Photoelectric sensor
