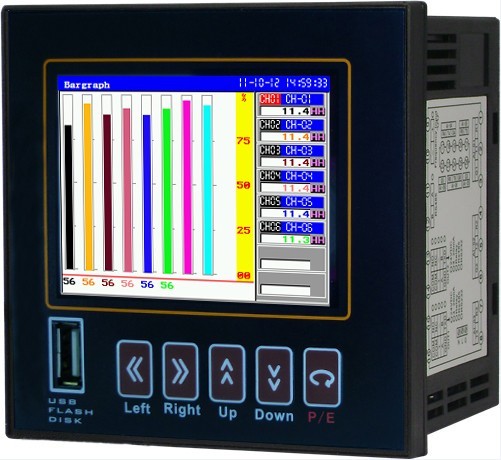

PRC6000 is mini economic true color paperless recorder, designed with modern advanced SMT technology and modular, to be designed lower power consumed, high accuracy, universal use, easy operation, to be aimed to monitor, record, analysis the processes in various industry application.
Application
Chemical,Petroleum, Pharmaceutical, Metallurgy, Marine, Sewage treament, Paper, Electricity, Nuclear power, Food, Cement, Building, aviation, Medical University and others industries application.
Features
Accuracy: +-(0.2%FS+1)digit
Size: 96x96x85mm
320x240 TFT true color LCD display
Universal input: T.C, RTD, mA, mV,V
Up to 6input channels, isolated ,selectable
8MB flash memory built in for long term recording
Various display: single &multi channel, trend, bargarph, circular chart display
Up to 2 relay alarm output, up to 4 limits alarm output per channels,optional
Up to 2 channels 4-20mA retransmission output for other device, optional
Application
Chemical,Petroleum, Pharmaceutical, Metallurgy, Marine, Sewage treament, Paper, Electricity, Nuclear power, Food, Cement, Building, aviation, Medical University and others industries application.
Features
Accuracy: +-(0.2%FS+1)digit
Size: 96x96x85mm
320x240 TFT true color LCD display
Universal input: T.C, RTD, mA, mV,V
Up to 6input channels, isolated ,selectable
8MB flash memory built in for long term recording
Various display: single &multi channel, trend, bargarph, circular chart display
Up to 2 relay alarm output, up to 4 limits alarm output per channels,optional
Up to 2 channels 4-20mA retransmission output for other device, optional
Certificate
- ISO90001
- CE
- ROHS
Main Products
paperless recorder,Temperature Controller,Process Indicator
