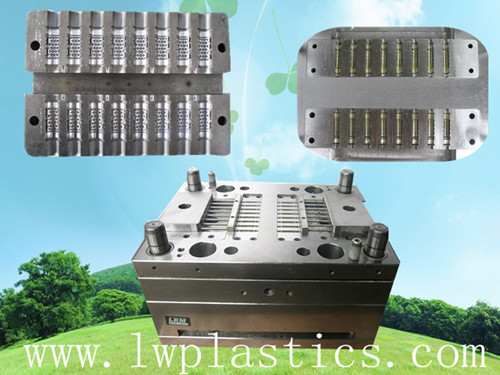

Model Number CY-C-R16
Runner System Cold Runner
Product Made by Mould Inline Round Dripper
Cavity Quantity 16
Overall Dimension (L*W*H) 420mm×300mm×275mm
Mould Designing Weight 175KG
Injection Molding Machine Clamping Force > 100T
Shots Per Minute 12s to 15s
Service Life Over 1 million shots
Sprue Style Subsurface Gate
Mould Base LKM (2730DI A50 B40)
Cavity Insert Material S136 (ASSAB)
Core Material SKD61 (Japan Daido)
Sprue Bush ¢16×50
Cooling Water Nozzle M10 (Brass)
Backhaul Spring ¢30×100
Holding Ring ¢100mm
Cooling Method Cooling by Circulating Water
Dripper Flow Rate Deviation ≤5%
Runner System Cold Runner
Product Made by Mould Inline Round Dripper
Cavity Quantity 16
Overall Dimension (L*W*H) 420mm×300mm×275mm
Mould Designing Weight 175KG
Injection Molding Machine Clamping Force > 100T
Shots Per Minute 12s to 15s
Service Life Over 1 million shots
Sprue Style Subsurface Gate
Mould Base LKM (2730DI A50 B40)
Cavity Insert Material S136 (ASSAB)
Core Material SKD61 (Japan Daido)
Sprue Bush ¢16×50
Cooling Water Nozzle M10 (Brass)
Backhaul Spring ¢30×100
Holding Ring ¢100mm
Cooling Method Cooling by Circulating Water
Dripper Flow Rate Deviation ≤5%
