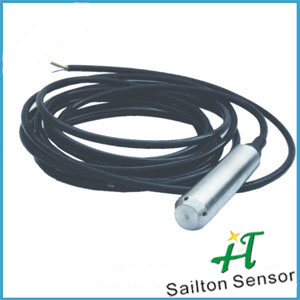

BH9345 1.5 mA / 9V DC Oil-filled Liquid Level Piezoresistive Pressure Sensor / Transducer

The main element of BP series pressure transducers is HT series silicon oil-filled sensors, which can transfer pressure to linearizating voltage signal. Have characteristics of high precision, good stability and ingenious configuration. Can measure all sorts of gas and liquid compatible with stainless steel.



Model:
BH9345

RangeRange:
0-0.6m-200m

Using range:
gauge pressure

Power:
1.5mADC/9VDC

Output:
100mV ±20mV

Measurement medium:
liquid or gas compatible with 316LSS

Weight:
0.5KG



Specifications:



Range

Pressure type
0~6KPa~60MPa

Differential pressure type
0~6KPa~2MPa

Liquid level type
0~0.6m~200m

Accuracy

±0.1% ±0.2c±0.3% ±0.5%

Power supply

Constant current
1.5mADC

Constant voltage
9VDC

Signal output

DC 100mV±20mV(BP9350Model: DC 100mV±2mV)

Operating temperature range

-20℃~80℃

Long stability

≤±0.2% F.S/ year

Permitted overload

Is or less than 2X rated range

Connection size

M12*1 or Φ8 gas mouth or user choose

Medium

Liquid or gas compatible with 316LSS
