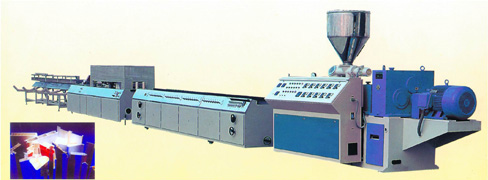

◆It is minaly used to produce the pasdtics door and windows profiles. The plastics decorative plates and PVC foaming profiles.
◆The main machine uses frequency conversions for speed requlation, and super-taper twin-screw extruder with temperature-regulating in the screw core.
Main Technical Specifications of The Auxiliary Machine

TYPE SY Model 120 Small Profile
SY Model 240 Ceneral-Purpose
SY Model 240 Quasi-High Speed
SY Model 240A High Speed
Quantity of Vacuum Concent -0.096 -0.096 -0.096 -0.096
Max.Vacuum 30 30 40 40
Vold Mod Length of setting Table/mm 3000 4000 4000/5000 6000/8000
max Drawing Force 20 30 40 40
max Drawing Speed 8 3 5 5
Crawler Width 200 240 240 240
Water Consumption 2.5 4 5 6
Gas Consumption 8 10 12 15
Total Power.KW 24.3 27 33.5 34.7
Appearance Dimension m×m×m 15100×860×1400 13500×1045×1760 16385×1465×2127
17135×1465×2127 18750×1465×2130
19410×1645×2130
