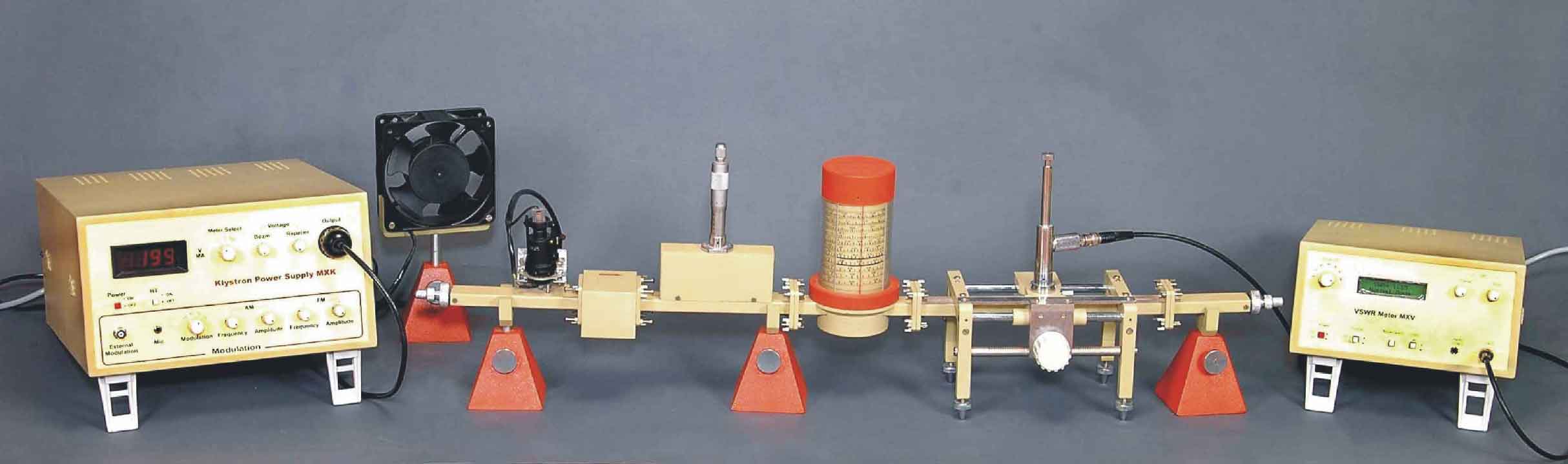

10404
Experiments:
- Study of Reflex Klystron
- Frequency, Guide Wavelength Measurement
- SWR, Reflection Co-efficient Measurement
- Impedance Measurement
Instruments:
SKPS ----------------------------------------------------------------1
VSWR Meter -------------------------------------------------------1
Components:
Cooling Fan---------------------------------------------------------1
Detector Mount ----------------------------------------------------1
Fixed Short ---------------------------------------------------------1
D.R.F. Meter--------------------------------------------------------1
Isolator --------------------------------------------------------------1
Klystron Mount ----------------------------------------------------1
Matched Termination----------------------------------------------1
Movable Short------------------------------------------------------1
S S Tuner------------------------------------------------------------1
Slotted Section --------------------
