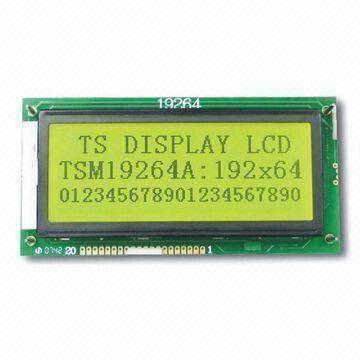

Graphics LCD Module, 192 x 64, STN-YG, Positive, Transflective, COB, Y/G LED Backlight
Product ID: TSM19264A
Send Inquiry
Key Specifications/Special Features:
Structure: COB with metal frame
LCD display mode: STN-YG, positive, transflective
Viewing angle: 6 Oclock
Driving method: 1/64 duty, 1/9 bias
Backlight: Y/G LED
Control/driver IC: S6B0107/S6B0108
Outline: 130.0 x 65.0 x 13.5mm (maximum)
Viewing area: 103.92 x 38.94mm
Active area: 97.486 x 32.462mm
Dot pitch: 0.508 x 0.508mm
Dot size: 0.458 x 0.458mm
Structure: COB with metal frame
LCD display mode: STN-YG, positive, transflective
Viewing angle: 6 Oclock
Driving method: 1/64 duty, 1/9 bias
Backlight: Y/G LED
Control/driver IC: S6B0107/S6B0108
Outline: 130.0 x 65.0 x 13.5mm (maximum)
Viewing area: 103.92 x 38.94mm
Active area: 97.486 x 32.462mm
Dot pitch: 0.508 x 0.508mm
Dot size: 0.458 x 0.458mm
Certificate
- ROHS
