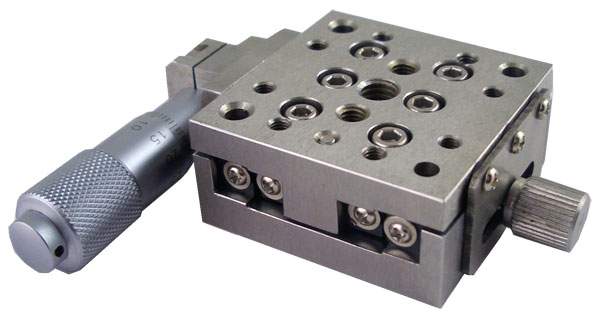

13mm (1/2”) Travel, Stainless Steel Crossed-Roller Bearing Linear Stage
Specifications
n Item Number: WN102TM13H
n Travel Range: 13mm (0.51")
n Platform: 40mm × 40mm (1.57" x 1.57")
n Actuator Type: Micrometer Head in Side (Included!)
n Adjustment: 0.5mm/Revolution, 0.01mm/Scale
n Travel Guide: Precision V-Groove & Crossed Roller Bearing
n Max Load Capacity (Horizontal): 8.0kg (17.64lbs)
n Max Load Capacity (Vertical): 2.0kg (4.41lbs)
n Weight: 0.2kg (0.44lb)
n Material: Stainless Steel
n Finish: Electroless Nickel Plating
Specifications
n Item Number: WN102TM13H
n Travel Range: 13mm (0.51")
n Platform: 40mm × 40mm (1.57" x 1.57")
n Actuator Type: Micrometer Head in Side (Included!)
n Adjustment: 0.5mm/Revolution, 0.01mm/Scale
n Travel Guide: Precision V-Groove & Crossed Roller Bearing
n Max Load Capacity (Horizontal): 8.0kg (17.64lbs)
n Max Load Capacity (Vertical): 2.0kg (4.41lbs)
n Weight: 0.2kg (0.44lb)
n Material: Stainless Steel
n Finish: Electroless Nickel Plating
