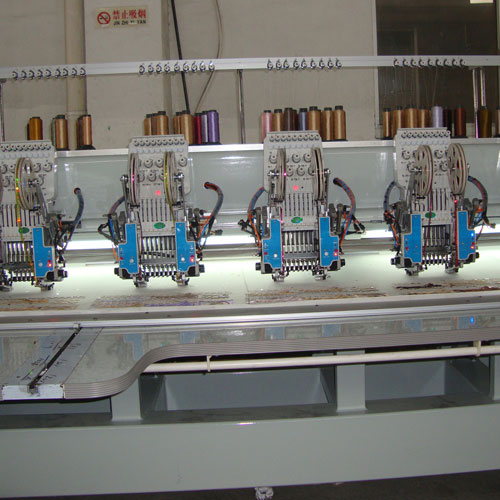

Sequin Embroidery Machine
Model: SINSIM-SQ920
Needles : 9 needle
Heads: 20
Net Wieght : 3000kgs.
Embroidery Space :400x1200mm
Length : mm
Sequin Embroidery Machine
SINSIM sequins embroidery machines have additional sequin embroidering function based on ordinary flat emboridery,therefore it owns mixed functions of flat embroidering and flat sequins embroiderying, elegant, fashionable and characterized embroidery designs with colorful sequin and threads are able to walk into our lives, it is the new product in embroidery field, and it is widely used for embroidery garments( collar, lace, complete clothes etc.)handbags,bridal veil, sweater, shoes, bedcovers, ornaments and high grade crafts etc.
Main Function:
Besides of the normal feature of flat embroidery machines, SINSIM embroidery machines have the following feature:
♦Single sequin, double sequin, twin sequin and double twin sequins available.
♦Sequin devices can be installed on both sides, front and either left or right side( suggestion:clothes for sides and garments for front)
♦Sequin available:3/5/7/9/11 mm, with shapes or round, square, drops and hearts.
♦Stable performance of sequins delivering device and structure, and the max.speed is 900rpm.
♦Double twin sequins (four sequins) device own not only the basic functions of single and double sequins, but also functions of overlap sequins, big-and-small sequins( amount can be adjusted according to the embroidering)
♦Lever structure makes adjustment more convenient
♦5inch, 8inch .10inch touch monitor computer sel ectable. Modern Design of operating panel, USB input port , Color LCD display showing real time stitching , Pre-sew design trace capable Emergency stop
♦Color-Change Mode: Step Color-change , Automatic Color Change. Auto color change according the design when in embroider.
♦Thread Trimming system: Automatic Thread Trimmer, Solenoid thread holding, step motor thread trimming and catching.
♦Needle Position Detecting : Rheostat . The machine has multi-heads and needles, can embroider several colors stitch flat designs at the same time, with auto trimmer function.
♦Thread Break Detecting : Thread break detection ,Thread take-up spring or chopping wheel .
Machine will auto stop and show the thread breakage head position if the thread break or the upper and udder thread used up when in the embroider.
♦Memory: 2 Million , Design Number :200. After the design file input computer can keep forever, the memory storage up to 2,000,000 stitches and store 200 samples.
♦Language: Chinese, English, Turkish, French, Spanish, Portuguese
♦Data Transfer Floppy Disk: Pattern input/output support USB updating.
♦Network Function: Support multi-machine network, data transfer, state monitoring, operating though network.
♦ Electricity: 220V/50Hz ,380V/50HZ available
Main configuration:
1.Dahao electric system, 328 -5inch monitor, and C18 /C88/316/366 can be assembled as per customers requestes,
2.Main motor :Dahao servo , Panasonic Servo ,Fuji Servo ,Sanyo Servo available.
3.X/Y Driver: All servo or Stepping Motor available.
4.Origian Japanese Rotary Hook
5.New style Liner driver
6.Needles:4/6/9/12/15, Heads:1-50 heads, Embroidery Space: X /150-1100mm,Y/300-1200mm.
Accessories Included :
♦ Table Support and Washer of machine foot
♦ Exploded View of Machine
♦Operation Manual
♦Tool Kit.
♦Automatic Bobbin Winding Machine
♦Air Compressor (If Need)
