Detailed Product Description

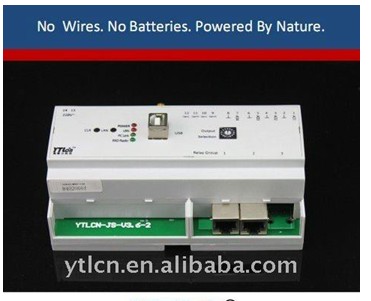

YTL channel receivers receives wireless signals from YTL wireless sensors and switches and provide 4 or 8 or 12relay outputs.
The connection from the receiver to actuator (relay case) uses network Cat 5 cable. 4 or 8 or 12 lighting circuits can be controlled by the receiver. Multiple receiver scan form a control network using CAN-Bus system. Computers can also be connected to the control network to query information from the receivers or send control commands to them. In this way, a centralized control can be implemented. Receivers may be installed above ceiling or inside electricity distribution box. There are 2 buttons on a receiver, one is used to make the receiver go into learning mode, and the other is used to clean up the learned information. It has the following characteristics:
Each receiver has a separate microprocessor, is the most advanced distributed control system.
Various switching modes are supported, such as delay on/off
The receiver has various control logic built in. Besides lights, it also can provide controls devices like curtain and HAVC.
1.1 Benefits
Easy installation, easy maintenance
Support various switching modes
Up to 4 or 8 or 12 outputs
Can self-learning IDs of YTL Wireless Sensors
Control various electric devices. Such as air-conditioning, lighting, curtain.
Support USB and Networking
1.2 Scope of Use
This product can be used in offices, hotels, schools, homes, factories, hospitals, municipal buildings, and other indoor places.
1.3 Parameters
Norm Conforming Assembly: Q/67218248-4.1-2009
Power Supply: 100VAC~265VAC, 50Hz/60Hz±1Hz
Frequency: 315MHz/868MHz
Operation Temperature: -10°C - 60°C
Storage Temperature: -20°C - 80°C
Humidity: ≤95%
Dimensions: 149mm x 90mm x 60mm
Output: 4 or 8 or 12 on/off outputs
Mechanical Data: Flame Retardant ABS
Protection Type: IP30
1.4 Points for Attention
The temperature of receiver is -10°C~60°C. Power AC100V~265V, 50Hz/60Hz; Use the product out of the scope may cause abnormal work or damage equipment.
The product is for indoor use only. Avoid dust, moisture, corrosion.
The product should be installed and used to the place that is non-shake, non-vibration. The position of antenna should far away from metal and other radio devices or devices generating electric noises.
Avoid electric shock, non-professional people can’t unpack the receiver.
YTL channel receivers receives wireless signals from YTL wireless sensors and switches and provide 4 or 8 or 12relay outputs.
The connection from the receiver to actuator (relay case) uses network Cat 5 cable. 4 or 8 or 12 lighting circuits can be controlled by the receiver. Multiple receiver scan form a control network using CAN-Bus system. Computers can also be connected to the control network to query information from the receivers or send control commands to them. In this way, a centralized control can be implemented. Receivers may be installed above ceiling or inside electricity distribution box. There are 2 buttons on a receiver, one is used to make the receiver go into learning mode, and the other is used to clean up the learned information. It has the following characteristics:
Each receiver has a separate microprocessor, is the most advanced distributed control system.
Various switching modes are supported, such as delay on/off
The receiver has various control logic built in. Besides lights, it also can provide controls devices like curtain and HAVC.
1.1 Benefits
Easy installation, easy maintenance
Support various switching modes
Up to 4 or 8 or 12 outputs
Can self-learning IDs of YTL Wireless Sensors
Control various electric devices. Such as air-conditioning, lighting, curtain.
Support USB and Networking
1.2 Scope of Use
This product can be used in offices, hotels, schools, homes, factories, hospitals, municipal buildings, and other indoor places.
1.3 Parameters
Norm Conforming Assembly: Q/67218248-4.1-2009
Power Supply: 100VAC~265VAC, 50Hz/60Hz±1Hz
Frequency: 315MHz/868MHz
Operation Temperature: -10°C - 60°C
Storage Temperature: -20°C - 80°C
Humidity: ≤95%
Dimensions: 149mm x 90mm x 60mm
Output: 4 or 8 or 12 on/off outputs
Mechanical Data: Flame Retardant ABS
Protection Type: IP30
1.4 Points for Attention
The temperature of receiver is -10°C~60°C. Power AC100V~265V, 50Hz/60Hz; Use the product out of the scope may cause abnormal work or damage equipment.
The product is for indoor use only. Avoid dust, moisture, corrosion.
The product should be installed and used to the place that is non-shake, non-vibration. The position of antenna should far away from metal and other radio devices or devices generating electric noises.
Avoid electric shock, non-professional people can’t unpack the receiver.
