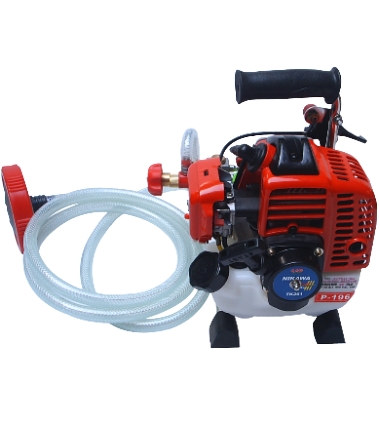

Portable Power Sprayer
Portable Power Sprayer
Product ID: P-196 / TK261
Send Inquiry
According to different tank capacity and pump type selected, the product model number is different.
According to pump type and nozzle selected, the maxmum pressure varies.
Specifications
NumberP0003
Model
P-196
Tank capacity
0.65 L
Fuel tank capacity
0.8 L
Engine
Brand model
NIKAWA TK261 e - START
Output / Displacement
1.4 HP / 26.0 c.c.
Carburetor
Diaphragm type
Fuel
Mixture of gasoline and lubricating oil (ratio 25:1)
Pump
Type
Grease / Strong / Aluminum ( Select one from 4 kinds )
Code name
GSA
Type
Horizontal gear driving type
Plunger
1 piece (two-way operation)
Cylinder
2 piece ( Aluminum)
Dia. of plunger
18 mm
Stroke
7 mm
Maximum pressure
40 ~ 65 kg/cm²
Output volume
8 ~ 12 L/min
L×W×H
43.6×35.5×63.5 cm
Weight
9.5 kgs
808 SERIES PUMP TYPES
GREASE TYPE
OIL TYPE
TYPE
FEATURES
DIAGRAM
TYPE
FEATURES
DIAGRAM
Strong Type (Aluminum) Code name:GSA
Ultra-high pressure Fast outputCylinder: Aluminum
Strong Type (Aluminum)Code name:OSA
Ultra-high pressure Fast outputCylinder: Aluminum
Strong Type (Brass)Code name: GSB
Ultra-high pressure Fast output Cylinder: Brass
Strong Type (Brass) Code name: OSB
Ultra-high pressure Fast outputCylinder: Brass
Features
The shape is light and handy
Can be used everywhere and convenient for operation.
Arbirtrarily adjustable pressure switch
Limitless section - To increase the elasticity of pressure and enlarge the difference of the pressure control range.
High Pressure
For the best combination, the highest pressure can achieve 60 kg/cm
Various pump types are available
Various pump types are available to meet the various requirements of the market.
