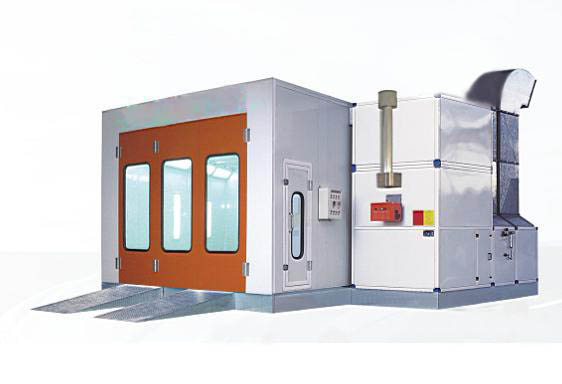

standard spraying/baking booth for cars
Specifications
- Chinese standard spraying booth
- External Size: 7.0 x 5.3 x 3.5 M
- Internal Size: 6.9 x 3.9 x 2.7 M
- Structure: EPS for wall panal, thickness 50mm, 0.326mm steel
- Safe Door 1870ⅹ650 (mm), 1 piece
- light system
- Top light 2 sides x 5 sets x 4 pcs，40W/piece
- Side light 2sides x 4 sets x 2 pcs，40W/piece; Vertical
- Burner Italian Riello diesel burner G20
- Intake Fan 1 set of 7.5kw
- exhuast fan 1 set of 5.5kw
- Air duct With 4m exhaust duct and 2 bends, without intake duct
- Fan capacity 24000 M3/h
- Motor Voltage 380V/50HZ/3PH (RMB2200 added if other voltage)
- Control box Import components;Motor direct start ; Without pressure meter
- Total Power 16.5 kw
- Floor 3 rows of veins plates, 2 rows of grids
- Floor filter Imported, 2 rows/set
- Ceilling filter Imported, 4pcs/set (Hinge installed，iron welded, powdered)
- Enviromentel system: No (Active carbon system for option)
