Liquid tight straight connector - metric thread: B2142

Liquid tight straight connector - metric thread: B2142

Click here for details.

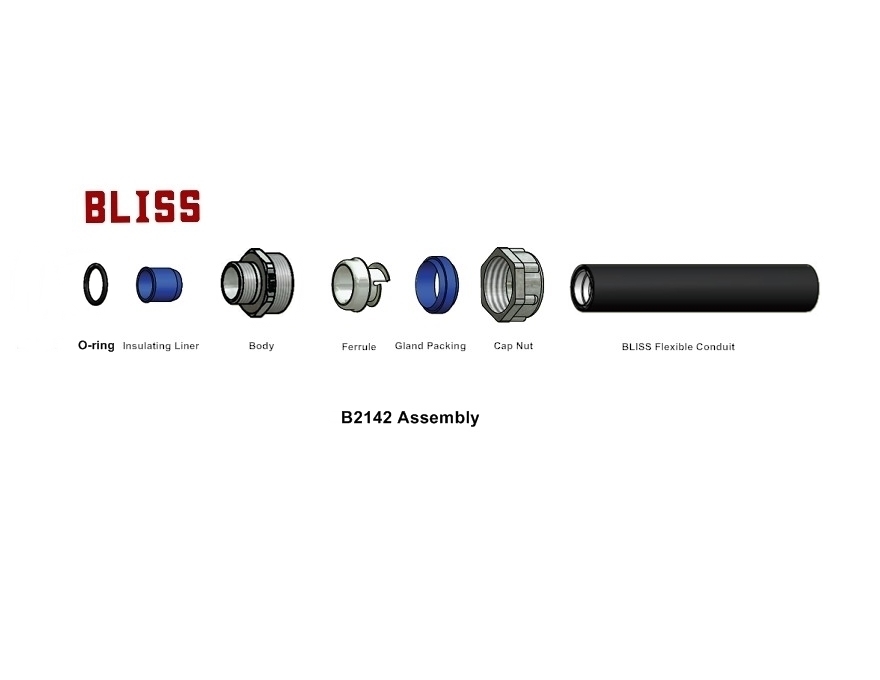

Liquid Tight Straight Connector - Metric Thread

Product ID: B2142

Send Inquiry
Features
  • Die cast zinc (zinc alloy), zinc plated.
  • Metric thread.
  • Finished with locknut and insulating liner.
  • For liquid-tight flexible steel conduits use such as A2017, A2067, etc.
  • IP67.
  • No locknut attached (optional).
  • RoHS & REACH Compliant.
  • UL listed metric connector B2141, L2141, N2141 are available.

Catalog number Trade size
(inch)
I.D.
(mm)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
Metric Thread Packing
(pcs)
B21420316
(no insulating liner)
3/8" 11.5 29.0 22.0 11.0 16.0 M 16 x 1.5 50
B21420420 1/2" 14.5 35.0 22.0 12.0 20.0 M 20 x 1.5 50
B21420625 3/4" 19.5 42.0 27.0 16.0 25.0 M 25 x 1.5 50
B21421032 1" 25.0 48.5 31.0 18.0 32.0 M 32 x 1.5 50
