Bliss Yih Enterprise Co., Ltd.

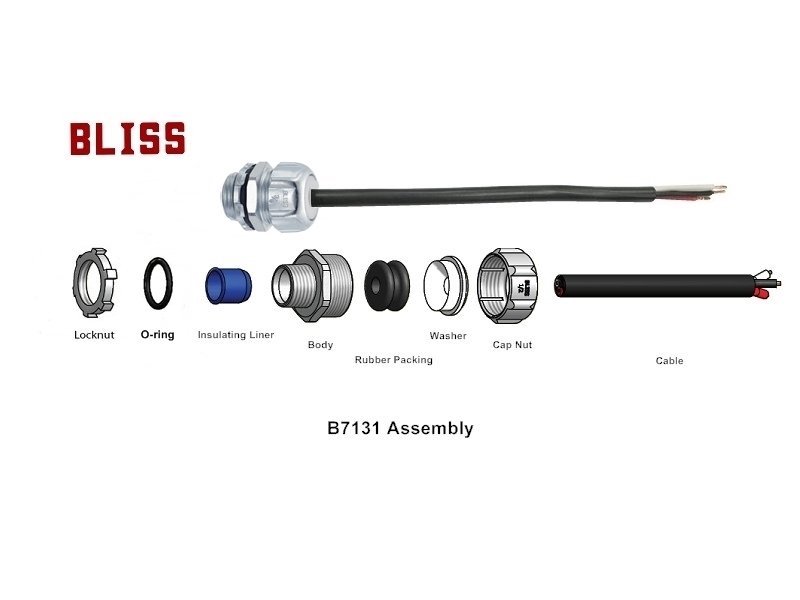

Features
- Malleable iron, ductile cast iron or steel, zinc plated.
- Furnished with O-ring and insulating liner.
- NPT thread.
- Metric thread, PG thread and PF thread (die cast zinc) available by request.
- For fixing power cable.
- IP67.
- RoHS & REACH compliant.
- 90 angle type L7131 and 45 angle type N7131 are available.
| Catalog number | Nominal size | A (mm) |
B (mm) |
C (mm) |
D (mm) |
Suit for cable size (mm) | Thread | Packing pcs |
|---|---|---|---|---|---|---|---|---|
| B71310304 | 3/8" | 29.0 | 22.5 | 14.5 | 21.0 | 4 - 8 | NPT 1/2 | 100 |
| B71310308 | 3/8" | 29.0 | 22.5 | 14.5 | 21.0 | 8 - 12 | NPT 1/2 | 100 |
| B71310312 | 3/8" | 29.0 | 22.5 | 14.5 | 21.0 | 12 - 13 | NPT 1/2 | 100 |
| B71310614 | 3/4" | 41.5 | 28.0 | 16.0 | 26.4 | 14 - 18 | NPT 3/4 | 50 |
| B71311018 | 1" | 46.0 | 31.5 | 19.5 | 33.3 | 18 - 24 | NPT 1 | 50 |
| B71311224 | 1-1/4" | 55.5 | 34.0 | 20.5 | 41.9 | 24 - 32 | NPT 1-1/4 | 25 |
Main Products
liquid-tight flexible conduit, flexible metal conduit, conduit fitting, flexible conduit connector,EMI/RFI shielding conduit, flexible carrier
