IDF SANITARY HYGIENIC UNION, Inox/Stainless Steel, including Liner, Male, Gasket and Nut - manufactured by TECH CONTROL ENTERPRISE CO., LTD. TAIWAN

IDF SANITARY HYGIENIC UNION, Inox/Stainless Steel, including Liner, Male, Gasket and Nut - manufactured by TECH CONTROL ENTERPRISE CO., LTD. TAIWAN

Click here for details.

IDF Union Fittings, INOX Stainless Steel Hygienic Union Fittings, Dairy Fittings IDF - 食品/飲料/啤酒/釀造/製酒/牛乳/生技/製藥/化妝品/化工/淨水處理/個人照護/車輛/電子/半導體/食品飲料包裝機械/整廠規劃/整廠設備/廠務系統/衛生級配管工程用管件 IDF 食品衛生級由任(接頭、牙口、螺母、墊片)

Product ID: 05

Send Inquiry

Stainless Steel Sanitary Hygienic

IDF UNION

● WELD MALE

● WELD LINER

● EXPANDING MALE

● EXPANDING LINER

● HEX NUT

● BLANK LINER

● GASKET / SEAL



 IDF14  Weld Liner

 IDF15  Weld Male



 IDF14R  Liner for Expanding / Roll-On Expanding Liner

 IDF15R  Male for Expanding / Roll-On Expanding Male



 IDF13H  Hex Nut



 IDF16A  Blank Liner

 IDF40  IDF Gasket



... and various Gaskets for Food-Grade Hygienic Piping in Compliance with FDA Requirements (Silicone, EPDM, Teflon, Viton, Buna-N)



IDF UNION 由任接頭組 是一種專為食品衛生應用而設計的管道連接方式,由 一個平接頭一個帶螺紋接頭 、一個墊片(墊圈) 以及 一個螺紋六角螺母 配對而成。源於國際酪農協會  (International Dairy Federation) 規範,該組織專注於乳製品生產和衛生標準的制定。



 IDF Union 具有以下特點

  1. 食品衛生級設計:採用光滑、清潔的內孔,減少細菌、污垢和其他污染物的滋生積聚,確保食品安全衛生。

  2. 卓越的密封性能,使用密封圈牙接頭和螺母的組合實現可靠的密封,防止泄漏和污染。

  3. 易於拆卸,方便進行清潔、維修和更換工作。

  4. 適用CIP(Clean In Place 線上清洗)系統



在 食品、飲料、啤酒、釀造、製酒、牛乳、製藥、生技、化妝品、化工、淨水處理、個人照護、電子、半導體 等製程中,管路系統 必須要符合以下要求:

  • 安全衛生:所有 會接觸到產品 (在此指食品、飲料和藥品等產品) 的管件和設備的 設計和製造,應該要 符合相關行業的標準和規範,以確保產品的 安全性。管件和設備應該要 具有光滑的表面,無死角或裂縫,並且 易於清潔和消毒,以 減少細菌滋生 的可能性。
  • 材料選擇:採用 不銹鋼等耐腐蝕材料 製造,以確保 在食品、飲料和藥品接觸環境中 的 耐用性和化學穩定性。這些材料必須要 符合食品衛生安全法規,並能夠抵抗 腐蝕、污染和變形。
  • 密封性能:為避免任何物質滲漏或進入管道系統,管件的密封性能至關重要。管件必須具有 可靠的密封設計,以 確保無滲漏 並 防止交叉污染。
  • 易於拆卸和安裝:管件應該具有 容易拆卸和組裝 的特點,以 方便清潔、維修和更換,減少生產線停機時間。
  • 可靠性和耐久性:管件必須要能夠 在高壓、高溫和頻繁操作下 保持穩定性。並經得起 長時間使用和循環清潔,不容易損壞或磨損。



玄盛企業股份有限公司生產的所有食品衛生級由任管件, 材料皆經過 Olympus Innov-X Delta XRF Metal Analyzer 金屬材質檢驗機 嚴格把關,表面處理 Ra ≤ 0.8μm, 符合 食品衛生級 標準,精密加工,易於焊接、組裝和維護,銳利邊角 經過打磨,組裝 維護 清潔 不傷手,出貨前 100% 檢驗



Each piece of TECH CONTROL's HYGIENIC TUBE FITTINGS & VALVES, is manufactured under the strictest material control and highest precision engineering to meet the world-class Hygienic Standards and Sanitary Requirements.



Furthermore, the excellent metallurgical characteristics and minimum tolerence are favored by all piping engineers.



All Food-Grade Sanitary Hygienic Tube Fittings & Valves manufactured by TECH CONTROL ENTERPRISE CO., LTD. TAIWAN undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer, ensuring the materials meet the sanitary hygienic standards. The surface treatment achieves a roughness (Ra) value of ≤ 0.8μm, complying with food-grade hygiene standards. Our fittings are precision machined, easy to weld, and have burrs, sharp edges removed and corners polished. They are assembled and maintained without causing harm to the hands. Each fitting undergoes 100% inspection before shipping.

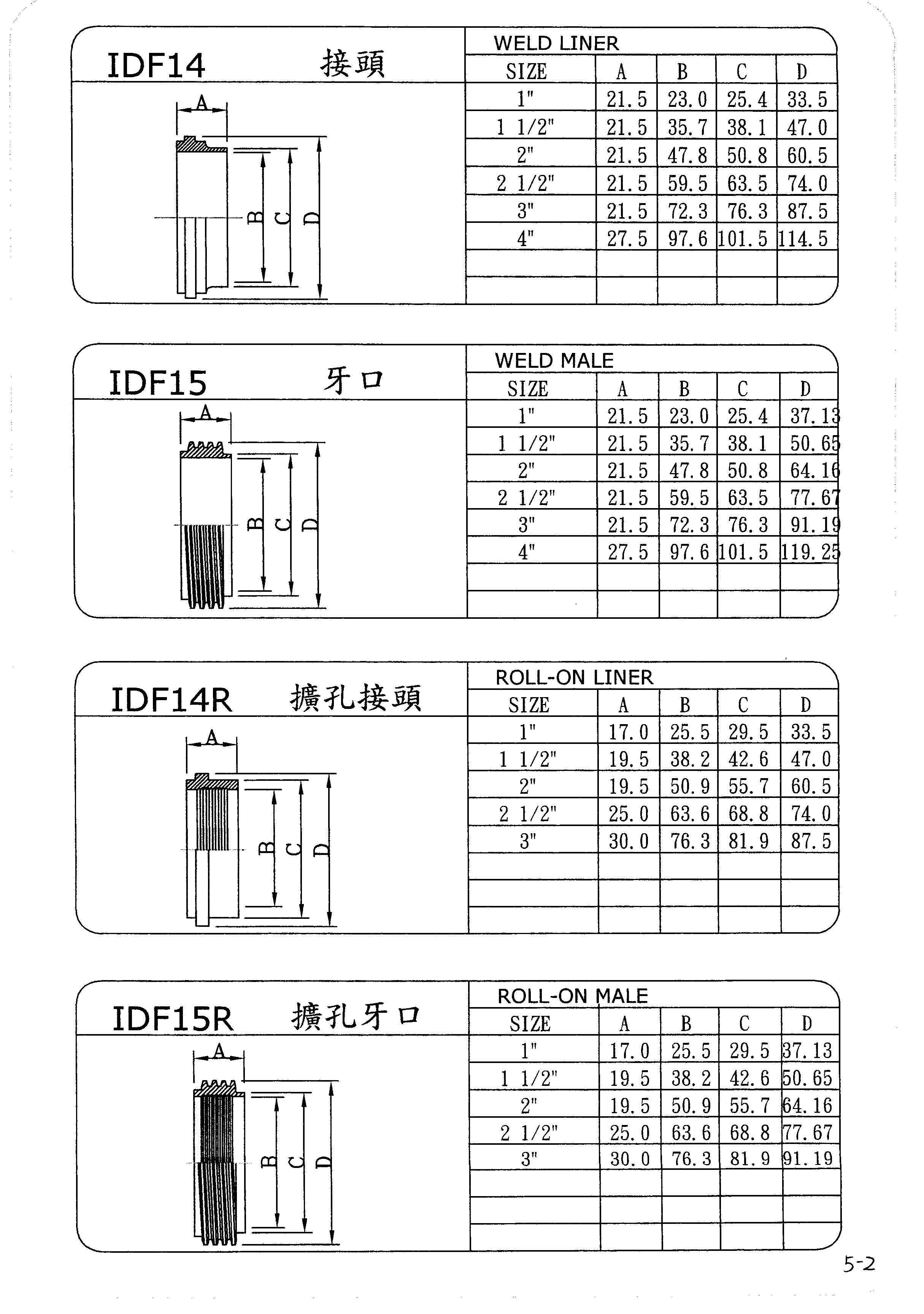

(以下產品尺寸圖, 點擊後可放大)

Click the DIMENSION DRAWINGS below to Enlarge




IDF14
焊無牙接頭
Weld Liner (IDF)

IDF15
焊外牙接頭
Weld Male (IDF)

IDF14R
擴管無牙接頭
Expanding Liner (IDF)


IDF15R
擴管外牙接頭
Expanding Male (IDF)

IDF16A
IDF盲蓋
Blank Liner (IDF)


IDF13H
六角螺母(母牙/內牙)
Hex Nut (IDF)


IDF40
IDF H型墊片
IDF Gasket



由此下載本產品最新型錄 !!!

Download LATEST  PRODUCT CATALOG Here !!!

Specifications
  • Size: 1" 1.5" 2" 2.5" 3" 4" IDF (Unit : mm) 1" (OD=25.4, t=1.2) 1.5" (OD=38.1, t=1.2) 2" (OD=50.8, t=1.5) 2.5" (OD=63.5, t=2.0) 3" (OD=76.2, t=2.0) 3.5" (OD=89.1, t=2.0) 4" (OD=101.6, t=2.0) Check the dimension drawings for detail...
  • Material : Stainless Steel Parts are available in SS316 or SS304, Nuts are in SS304 only. Gaskets are available in Silicone, EPDM or Viton(FKM)
  • Gasket Material Characteristics Reference (Recommended Continuously-Operating-Temperature): Silicone : -30°C to 120°C, high-temperature resistance, white translucent EPDM : -30°C to 100°C, ozone resistance, black Viton: -15°C to 120°C, alcohol resistance, black
  • Example of Request for Quotation/Order : Part Number, Material, Size, Quantity IDF14, 316, 2", 5PCS
Features
  • Material Strictly Inspected and Selected by using Olympus Innov-X Delta XRF Metal Analyzer
  • Uniform Thickness and Tight Tolerence making the Piping engineering such as Assembling and Welding Easy
  • Quality Control and Fine Polish ensure High Strength and Superior Corrosion-Resistant Performance meeting the Strict Hygienic Requirements.
  • Burrs, Sharp Edges Removed & Corners Polished. They are assembled and maintained without causing harm to the hands.
  • Fully Inspected and Well Packed before delivery
Tube Specification Size(inch) OD(mm) Thickness(mm)
IDF 1" 25.4 1.2
IDF 1.5" 38.1 1.2
IDF 2" 50.8 1.5
IDF 2.5" 63.5 2.0
IDF 3" 76.2 2.0
IDF 3.5" 89.1 2.0
IDF 4" 101.6 2.0
Certificate
  • ISO-9001
