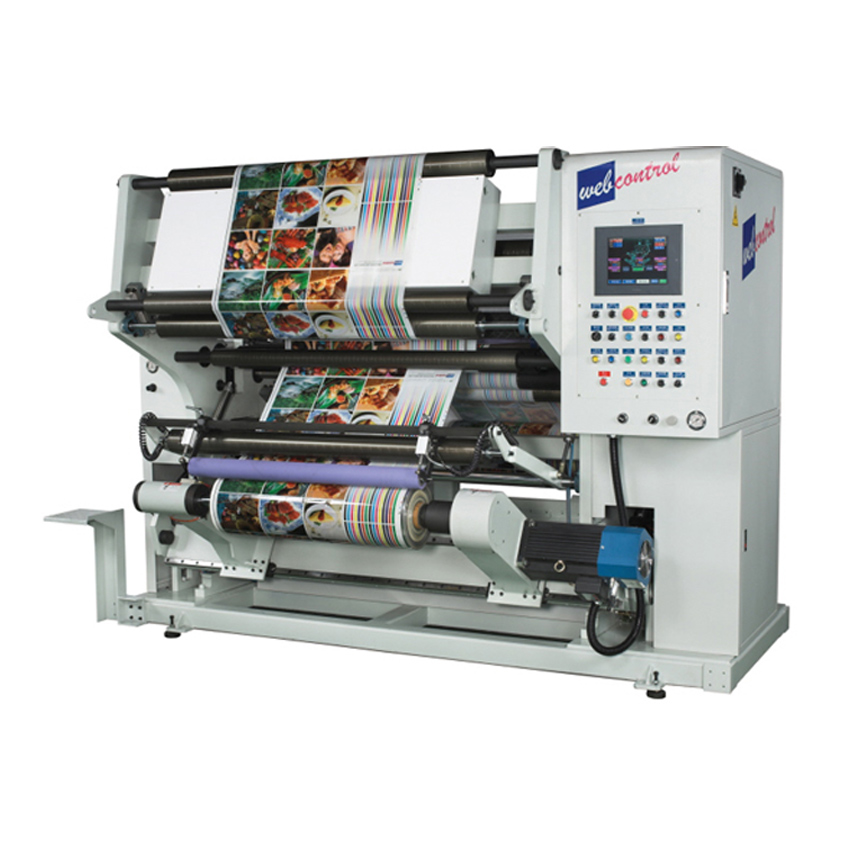

INSPECT-S , INSPECT-V

Product ID: INSPECT-S , INSPECT-V

Rewinding Machines Description:

This two models are designed for wide web after printing or lamination, Auto. defects detecting system for precisely and 100% continuously inspection is optional which is becoming more popular in order to meet increasingly demand of zero defect.

	MEMORY FUNCTION ．When any defect is detected by human-eyes, press INSPECTION button and then the machine reverses automatically, the defects will be stopped at center of inspection table for operator to easily fiind and cut off the part.
	MAN-MACHINE INTERFACE(MMI) ．All models come standard with MMI touch screen interface. ．The touch screen has high resolution color as well as a long service life. ．All models come standard with independent and free-standing operator panels.

Model	INSPECT-S 1300/1600	INSPECT-V 1300/1600
Speed(m/min)	300	300
Available width(mm)	1300/1600	1000/1300
Unwind diameter(mm)	800	800
Rewind diameter(mm)	800	800
STANDARD
Digital guiding system	●	●
Shaftiess unwind/rewind	●	●
Shaft unwind/rewind	N/A	N/A
Cantileverd unwind/rewind unit with 3” air shaft	N/A	N/A
Forward and backward operation	●	●
Tension transducers for unwind and rewind unit	●	●
Dancer tension control on unwind and rewind unit	N/A	N/A
Taper tension mode	●	●
OPTIONAL	●	●
Auto. Defects detection system(100% inspection)	●	●
Stroboscope	●	●
Splice Table	●	●
Trim Slitting System	●	●
Unwind and rewind diameter increase – 1000mm.	●	N/A
Unwind 6” chuck	●	●
Rewind 6” chuck	●	●
CE/UL	●	●
