Yo Den Enterprises Co., Ltd.
Features:
- Film Accumulation
- Unilux Strobe & Operator View Table
- Razor & Shear Knifes
- Twin Differential Rewinds
- Digital Edge Guide
- Unwind & Splice Table
- Foot Pedals
- Touch Screen
- Web Gripper
|

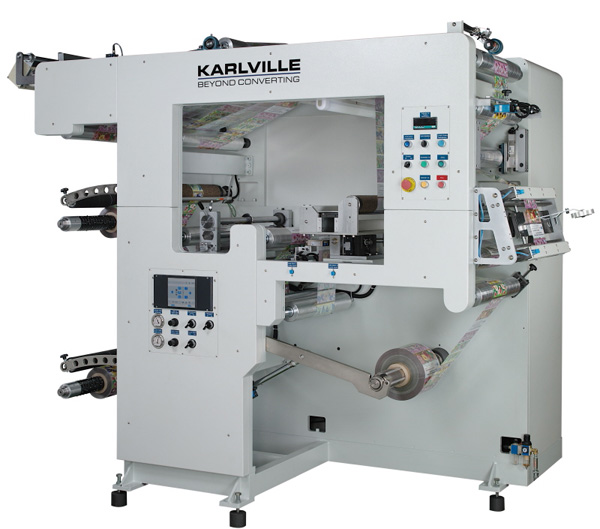

Model
|
ProLabel
|
|
Materials
|
Unsupported film structures & self adhesive label stock
|
|
Available widths
|
450mm/650mm
|
|
Speed
|
300 meters per minute
|
|
Unwind diameter
|
800mm / 1000mm
|
|
Rewind diameter
|
600mm
|
|
Core sizes
|
1- 6” standard 3” (76”mm)
|
|
Unwind splice table
|
Standard
|
|
Unwind tension system
|
Auto control by load cell
|
|
Unwind shaft
|
Cantilever air shaft
|
|
Unwind tension control
|
Driven AC vector motor
|
|
Unwind edge guide
|
E+L Germany – ultra sonic edge; Line & edge optional
|
|
Separate unwind for 1000mm diameter unwind rolls
|
Optional
|
|
Nip design
|
Driven ac vector motor, pneumatically actuated
|
|
Rewind operator view table
|
Standard; synchronized strobe
|
|
Rewind shafts
|
Twin shaft – bi directional
|
|
Rewind standard shafts
|
Quick change air shaft
|
|
Rewind differential shaft option
|
Camlock design – width 20 & 25mm
|
|
Rewind tension system
|
Auto control by independent load cell for each shaft
|
|
Rewind tension control
|
Independent twin driven AC vector motors
|
|
Lay-on roller for rewind shafts
|
N Standard
|
|
Web clamps for rewinds
|
Standard
|
|
Waste & trim removal
|
Optional
|
|
Splice table
|
Standard
|
|
Razor Slitting
|
Standard – 3 knives
|
|
Shear slitting
|
Standard – 3 knives - cartridge
|
|
Smart label counter management system – two systems available
|
The LC1 smart counter uses advanced technology complemented by advanced inspection algorithms for precise label count.
The LC2 smart counter uses advanced technology for precise label count, multi-lane missing label detection, matrix remains detections and automatic fault positioning / management system. |
|
Flag detection
|
Optional
|
|
Missing label sensors
|
8 Channel optional
|
|
Capacitive sensor
|
Optional
|
|
Reflective sensor
|
Optional
|
|
Vision system for 100% inspection separate stand for vision system installation
|
．Accumulation included for fault position, fault will stop at operator viewing table.
．If fault defect confirmed, operator jogs fault to splice table. ．Machine speed during 100% inspection – 300m/min ．Optional –web guide system and mechanical device for swing table for vision system requirements. |
