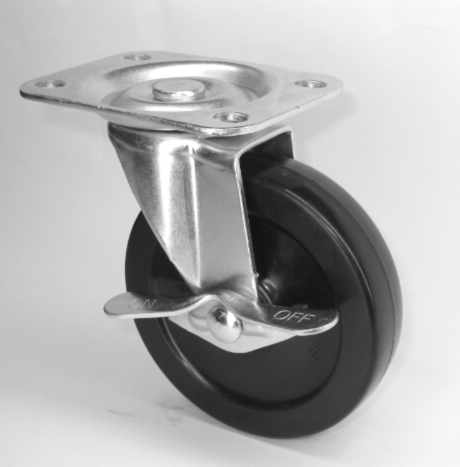

Swivel Plates For Light Duty Casters

Swivel Plates For Light Duty Casters

Click here for details.

Swivel Plates For Light Duty Casters

Product ID:

Send Inquiry
Huashen Company is a manufacturer and distributor of squash balls and rubber wheels. solid rubber wheels, soft rubber wheels, hard rubber wheels, training wheels, luggage wheels, rubber casters; double yellow dot squash balls, single yellow dot squash balls, red dot squash balls, blue dot squash balls, green dot squash balls.
1. Light Casters, Medium Duty Casters, Heavy Duty Casters
2. Soft rubber tread and hard rubber core
3. Wheel Size: 2" ~ 6"
4. Top Fittings: Swivel Plates, Rigid Plates, Friction Ring Stems, Threaded Stems
Specifications
  • Plate Size & Hole Spacing & Bolt Hole Size
    • (1) Plate Size:1-1/2"*1-1/2", Hole Spacing:1"*1", Bolt Hole Size:3/16"
    • (2) Plate Size:1-3/16"*2", Hole Spacing:13/16"*1-9/16", Bolt Hole Size:7/32"
    • (3) Plate Size:2"*2", Hole Spacing:1-1/2"*1-1/2", Bolt Hole Size:1/4"
    • (4) Plate Size:1-3/4"*3", Hole Spacing:1-1/16"*2-1/4", Bolt Hole Size:9/32"
    • (5) Plate Size:58mm*100mm, Hole Spacing:40mm*82mm, Bolt Hole Size:8.8mm
    • (6) Plate Size:42mm*70mm, Hole Spacing:28mm*56mm, Bolt Hole Size:6.5mm
  • Wheel type :
    • (1) Soft rubber hard core wheel
    • (2) Hard rubber wheel
    • (3) Plastic wheel
    • (4) Grey thermoplastic rubber
  • Brake :
    • (1) Side brake
    • (2) w/o brake
  • 1 kg = 2.2 lbs ; 1 lbs = 0.4536 kg ; 1 inch = 2.54 cm
  • OEM / ODM Casters or Wheels
Wheel Dia. Wheel width Wheel type Load cap.(lbs)
1-1/2"(40mm) 11/16" Rubber wheel / Plastic wheel 70
2"(50mm) 13/16" Rubber wheel / Plastic wheel 75
2-1/2"(63.5mm) 13/16" Rubber wheel / Plastic wheel 80
3"(75mm) 13/16" Rubber wheel / Plastic wheel 80
3"(75mm) 1-1/4" Rubber wheel / Plastic wheel 125
4"(100mm) 7/8" Rubber wheel / Plastic wheel 125
4"(100mm) 1-1/4" Rubber wheel / Plastic wheel 165
5"(125mm) 15/16" Rubber wheel / Plastic wheel 125
5"(125mm) 1-1/4" Rubber wheel / Plastic wheel 175
Certificate
  • ISO 9002 : 2000
  • RoHS Certification With SGS
  • ASTM Certification With SGS.
