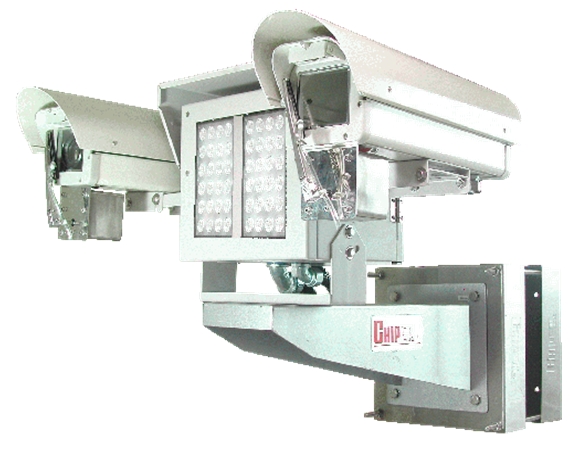

Mega pixel LPC camera for Double-lanes Recognition (Reflective License Plate)

Product ID: CPT-MG531 / CPT-LR48

Send Inquiry
Features & Characteristic:

  • Apply 1/3" Sony progressive scan CCD
  • Support H.264 & Mjpeg compression mode
  • Video compression rate: 32 kbps ~ 8 kbps
  • Built in ICR
  • Multi Level Auto Gain mode & White Balancing
  • Strong Supression against Light hazard
  • Multi Level Exposure shutter mode setting
  • Super sensitive chipset suitable to support IR Illumination application
  • Prepared with BLC / Flickerless ON/OFF switch
  • Support High Speed car LPC & LPR
  • Optional External Synchronization device
  • Support web-based surveillance
  • Built 1 channel Audio in / out (mono, Line in/out)
  • Built in RS-485 interface
LPC cameraCPT-MG531
Image sensor 1/3"  1.3M Sony progressive scan CCD
Image Resolution 1280 x 960
Display Rate 22.5FPS (1280x960), 30FPS (320x240), 13 steps
Compression rate 32 kbps ~ 8 mbps
Compression method H.264 / Mjpeg
Image setting AGC / AWB / etc
Sensitivity 0.5 Lux at F1.2
S/N Ratio >45dB
Auto Electronic shutter 1/60 ~ 1/100,000 second
Back Light Detection BLC / Flickerless ON/OFF, Switching Feature
Motion Detection ON / OFF
Sound compression G.711
Sample Rate 8 Khz
Main memory 128 Mbyte DDR2
Input / Output Connectors Standard Ethernet port, Support TCP/IP, UDP, HTTP, RTSP/RTP, FTP, SMTP, DHCP, DNS, DDNS, etc
1 Alarm input & 1 Alarm output
1 HDMI type A, HDMI Tx or 1 Composite
1 Line in, 1 Line out Audio
RS-485
Power consumption DC12V, 0.6A, support POE Function
Lens C mounting, Varifocal 8-80mm IR corrective, DC iris
Dimension & weight 109(W) x 65D x 59(H) mm.
Ambient Temperature 0 deg C ~ +70 deg C
Ambient Humidity 20% to 80% relative,      non-condensing.
Firmware
Operating System Linux, Embedded
LPC IR IlluminatorCPT-LR48
Illumination 40 meter, Angle : 30 deg,  850nM
LED 48 pcs LR LED
LED Life time MTBF: 12,000 hours
Power consumption AC90 ~ 264V,  max. 70w
CDS 20 Lux, +/- 5 Lux
Dimension 348W x 347H x 281L,  Window: 236W x 183H
Weight 13.5 Kg
