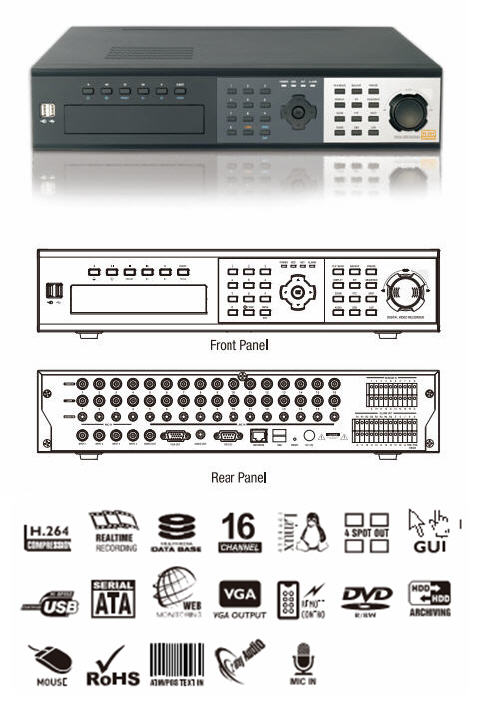

DVR

Product ID: HD08P/16P

Send Inquiry
Model - HD08P HD16P
Video In 8 BNC / 16 BNC 8 BNC / 16 BNC
Out 16 BNC looping out 1 VGA & 1 BNC, 4 Spot output 16 BNC looping out 1 VGA & 1 BNC, 4 Spot output
Audio In 8 RCA (4 Mic in, 4 Line in) 16 RCA (4 Mic in, 12 Line in)
Out 1 RCA (Line out) 1 RCA (Line out)
Device Sensor in 8 TTL / 16 TTL 8 TTL / 16 TTL
Alarm out 4 relay + 4 TTL 4 relay + 12 TTL
I/O interface RS 232, RS 485, USB 2.0x3, USB 1.1x1 for mouse RS 232, RS 485, USB 2.0x3, USB 1.1x1 for mouse
Display Speed Real time Real time
Resolution 720x480(NTSC), 720x 576(PAL) 720x480(NTSC), 720x 576(PAL)
Split screen 1,4,6,8,9,13,16 PIP, Digital Zoom 1,4,6,8,9,13,16 PIP, Digital Zoom
Recording Compression H.264 Codec H.264 Codec
Speed / Resolution 240fps@CIF(NTSC)/200fps@CIF(PAL);120fps@Half D1(NTSC)/100fps@Half D1(PAL);60fps@D1(NTSC)/50fps@D1(PAL) 480fps@CIF(NTSC)/400fps@CIF(PAL);240fps@Half D1(NTSC)/200fps@Half D1(PAL);120fps@D1(NTSC)/100fps@D1(PAL)
Picture Quality Very High, High, Standard, Low Very High, High, Standard, Low
Mode Time-lapse,Event,Time & Event,Text-in search,Emergency (Panic) Time-lapse, vent,Time & Event,Text-in search,Emergency (Panic)
Playback Display 1,4,6,8,9,13,16 digital 1,4,6,8,9,13,16 digital
Search mode Calendar search, Event search , Text-In search, Go to time Calendar search, Event search , Text-In search, Go to time
Play back mode Multi-Channel Normal & Reverse Play, RW & FF(x2, x4, x8, x16, x 32), Frame to frame , Pause Multi-Channel Normal & Reverse Play, RW & FF(x2, x4, x8, x16, x 32), Frame to frame , Pause
Network Network Interface Ethernet (10/100 Base) Ethernet (10/100 Base)
Protocol TCP/IP, HTTP, DHCP TCP/IP, HTTP, DHCP
Application Live, Playback, Setup, Notification(Call back,Email) Live, Playback, Setup, Notification(Call back,Email)
Web Browser IE 7 or High IE 7 or High
Storage - 3x SATA HDD& 1 x SATA ODD(Or max.4 SATA HDD without ODD) 3x SATA HDD& 1 x SATA ODD(Or max.4 SATA HDD without ODD)
Backup - CD & DVD-RW, External HDD (USB) memory, External USB memory CD & DVD-RW, External HDD (USB) memory, External USB memory
Control - Front panel button, USB mouse, IR Remote Controller, Joystick Controller, Jog-Shuttle Controller Front panel button, USB mouse, IR Remote Controller, Joystick Controller, Jog-Shuttle Controller
OSD - Graphic User interface(Multilingual) Graphic User interface(Multilingual)
Approval - FCC,EC, MIC FCC,EC, MIC
ROHS - ROHS Compliance ROHS Compliance
Power consumption - DC 12V, 6.67A(80W) DC 12V, 6.67A(80W)
Operating temperature - 5℃~40℃/ 41℉~104℉ 5℃~40℃/ 41℉~104℉
Operating humidity - 0%~80% / Non- condensing 0%~80% / Non- condensing
Dimension - 430(W)x 88(H) x 428(D)mm / 16.93(W)x 3.5(H) x 16.85(D) inch 430(W)x 88(H) x 428(D)mm / 16.93(W)x 3.5(H) x 16.85(D) inch
Weight - 6Kg /13lb (Without HDD) 6Kg /13lb (Without HDD)
Features
  • H.264 Standard Video compression
  • Real time recording and Multi Channel Playback
  • Dedicated DB structure for stability
  • Embedded Linux System to give you the ultimate reliability
  • 4 Spot Output with Event Pop up function
  • Up to 4 SATA HDD and 1 TB capacity support
  • Various recording resolution D1/Half D1/CIF
  • Remote site Web easy set up GUI same like DVR GUI save learning time
  • Web monitoring, searching and setup
  • Own media player for back up playback
  • 16 Audio input support
  • Two way audio
  • Multiple DVRs can be operated with one keyboard controller
  • Text in support for POS and ATM
  • Central Monitoring system (Optional)
Certificate
  • FCC
  • EC
  • MIC
  • ROHS
