Vertical Machine Center:
Series: VMC-850, VMC-1050, VMC-850A, VMC-1050A, VMC-1500
Fanuc, Mitsubishi, Heidenhain.., controller available.
Series: VMC-850, VMC-1050, VMC-850A, VMC-1050A, VMC-1500
Fanuc, Mitsubishi, Heidenhain.., controller available.
Features
- Linear Guide on X & Y axes for precision & high rapid feed speed.
- Heavily Ribbed and well balanced machine structure.
- Advanced spindle is designed for durability easy maintenance, providing high axial thrust capacity, yet generating minimum heat.
- Angular contact high precision spindle bearings with standard spindle speed up to 8000rpm.
| N/A | Table Size | Travels | Rapid Feeding | Table Loading |
|---|---|---|---|---|
| VMC-850 | 450 x 1000mm | 850 x 500 x 500mm | 1000mm/min | 650kgs |
| VMC-1050 | 450 x 1200mm | 1050 x 500 x 500mm | 1000mm/min | 700kgs |
| VMC-850A | 1000 x 450mm | 850 x 500 x 550mm | X, Y-24000mm/min / Z-16000mm/min | 650kgs |

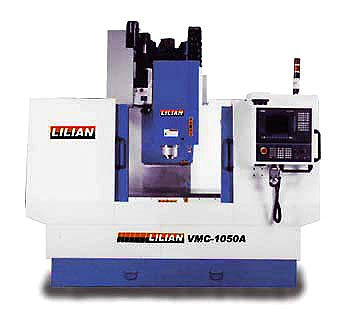

| VMC-1050A | 1260 x 560mm | 1050 x 610 x 510mm | X, Y-20000mm/min / Z-15000mm/min | 800kgs |
| VMC-1500 | 1700 x 815mm | 1600 x 800 x 700mm | 15000mm/min | 2100kgs |
