NC-308 Hydraulic 4-Column Cutting Machine

NC-308 Hydraulic 4-Column Cutting Machine

Click here for details.

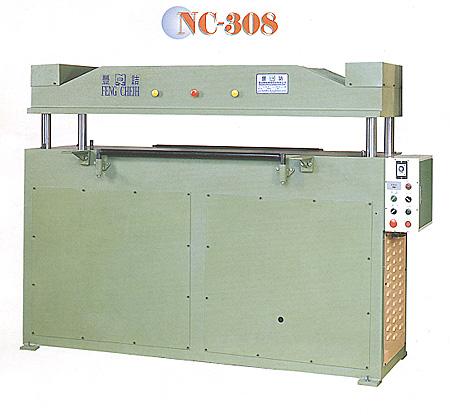

Hydraulic 4-Column Cutting Machine

Product ID: NC-308

Send Inquiry
Model NC-308 hydraulic cutting adopts completely the full oil hydraulic control system. The specially design hydraulic circuits are easy to operate and maintain. Increasing invariably the productivity for its users, it is a useful machine designed for various workpieces in need outings such as leather, plastic, cloth, leather bags, handicrafts, toys, hats and caps, vacuum formed articles paper, garment, sponge, non-woven, floor covering, carpet, baby carriages, balls, envelopes, gaskets, rain wear, umbrella, rubber products, cork products, ply-wood door etc.
Features
  • It is 2-section balanced cutting mode which the first section is going down of up-cutting palate, the second section is super high pressure cutting there are beautiful cut edge of cut products by this mode and the mode can increase life of NC-308 and save electric power rate.
  • 4-column balanced cutting, each pressure point is same pressure.
  • It may be operated manually or by pedal control.
  • This M/C furnished with electric-magnetic digital display, it may accurately show the number of cutting time to promote.
  • Low in noise and smooth in operations.
  • This M/C equipped with emergency stop mechanism.
  • Can following customers' request to produce.
  • We can accept sample Purchase.
  • Product Ownership:
    • OEM/ODM Product
    • Branded Product
    • Buyer's Label Offered
Pressure Cutting Area Motor Stroke Up Speed Down Speed
40 Ton 1,600 x 610 m/m 5 HP 20 - 145 m/m 110 mm/sec 180 mm/sec
50 Ton 1,600 x 610 m/m 7-1/2 HP 20 - 145 m/m 110 mm/sec 180 mm/sec
60 Ton 1,600 x 910 m/m 7-1/2 HP 20 - 145 m/m 110 mm/sec 180 mm/sec
80 Ton 1,600 x 910 m/m 10 HP 20 - 145 m/m 110 mm/sec 180 mm/sec
100 Ton 1,820 x 910 m/m 10 HP 20 - 145 m/m 110 mm/sec 180 mm/sec
Certificate
  • CE

Main Products

Hydraulic Cutting Machine, Hydraulic EVA Sheet Moulding Press, Rubber Sole Auto Hydraulic Press, Hydraulic Heating & Cooling Press, Hydraulic Plate Cutting Press, Rubber Belt Conveyor With Heating Box, Practical Type of Hydraulic Autobalanced Sole Attaching Machine, Hydraulic Forming Machine
