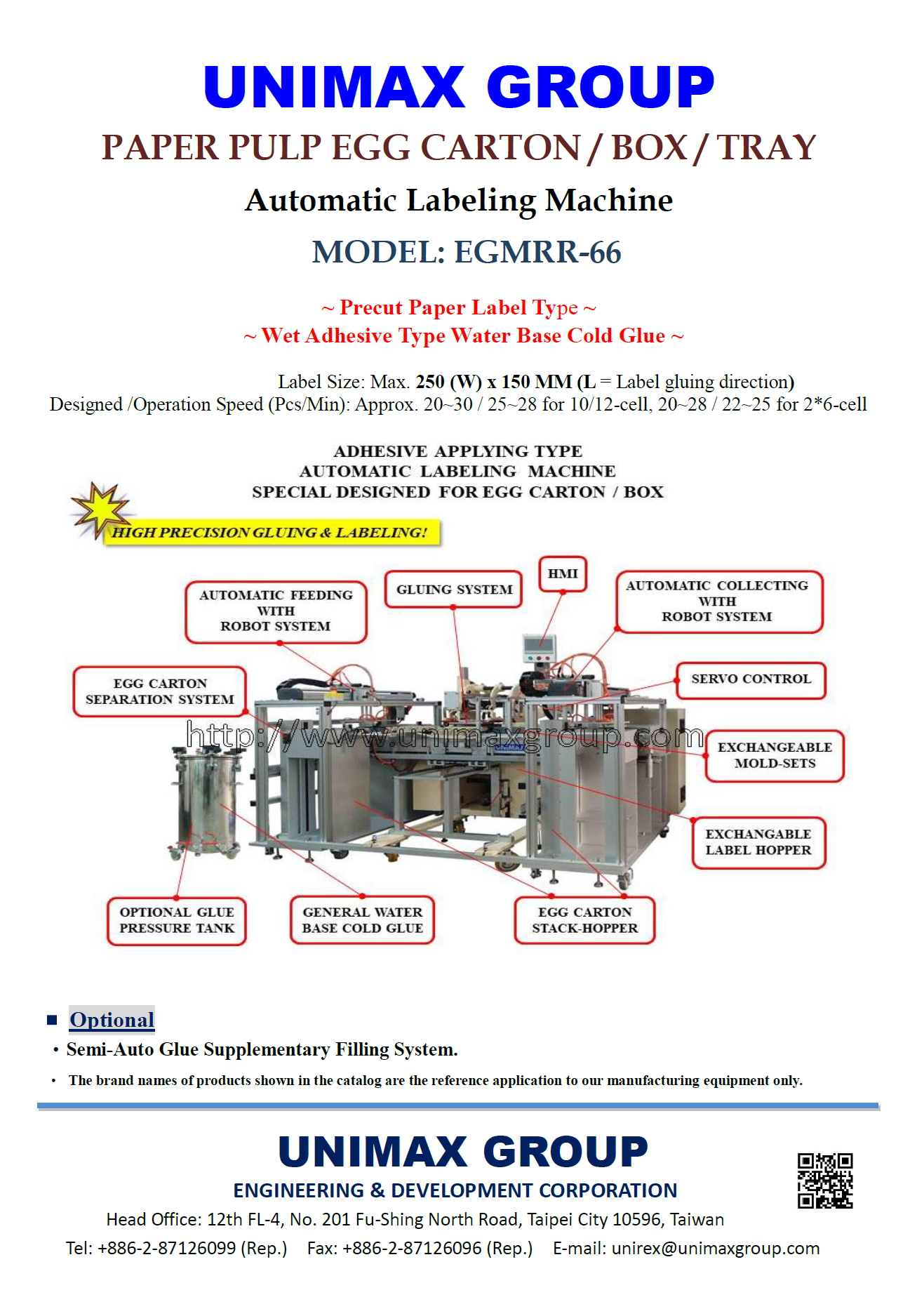

EGMRR-66 Automatic Paper Egg Carton/Box Labeling Machine (Stack-Hopper Feeding-Collecting Type)

Product ID: Paper Pulp Egg Carton Labeling EGMRR-66 Series (168)

Send Inquiry

■ MODEL: EGMRR-66 (for 10/12-cell, 2*6-cell)

 TYPE: 2H7S

• X-Table Robot Automatic Feeding-Gluing-Labeling-Collecting

• Optional CE Certificate Model is Available

 Application:

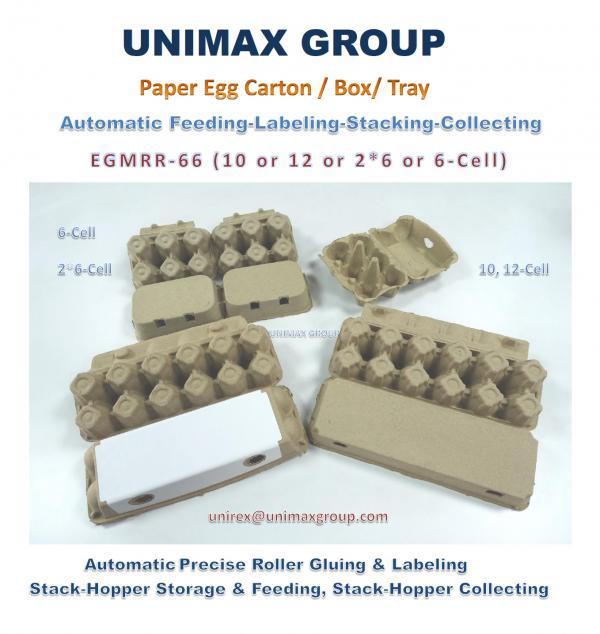

• Special for Recycled Paper Pulp Formed Egg Carton / Box / Tray

• General Water Base Cold Glue Labeling

• Optional Hot-Melt Glue Labeling

• Automatic Feeding-Roller Gluing-Labeling-Collecting

■ Designed / Operation Speed:

   Approx. 20~30 / 25~28 pcs/min (for 10/12-cell)

   Approx. 20~28 / 22~25 pcs/min (for 2*6cell)

Specifications
■ Features: * Integrated Control X-Table Robot with Each 2 Sets Hopper * Integrated Control Up & Down Stack-Hopper Magazine * Servo Motor Control ​Labeling & Transporting System * Standard Type with Fixed-Size Mold-sets * Optional Equipped with Interchangeable Type Mold-sets * Automatic X-Table Robot Feeding & Collecting
Features
♦ Function & Advantages: - Egg Cartons/Boxes/Trays Taking & Separating Automatically - Stacked Egg Trays Feeding Automatically - Egg Cartons/Boxes/Trays Automatic Transportation System - Products Position-Setting Automatically - Label Automatic Taking and Loading onto Egg Carton - Precisely Automatic Roller Gluing and Labeling - Labeled Cartons/Boxes/Trays Stacking in Receiving Stack-Hopper    Automatically  - Integrated Control X-Table Robot System - Equipped with Each 2 Sets Stack-Hopper Fixed Type - Egg Box / Carton / Tray Automatic Taking & Collecting ♦ Control System:- Programmable Logic Control System: Japan "Mitsubishi" PLC - Labeling System: Japan "YASKAWA" Servo Motor - HMI: Interfaced Control Touch Screen Monitor• Optional Hot-Melt Glue Labeling  * The brand names of products shown in the catalogue are the reference application to our manufacturing equipment only.
