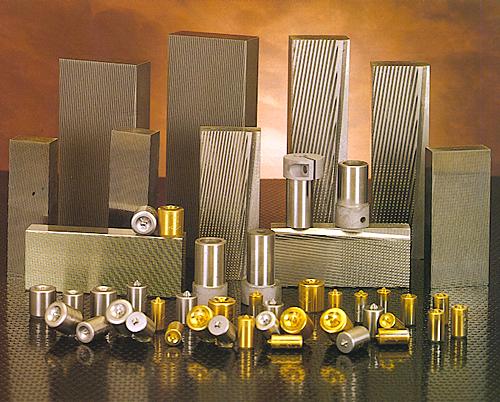

JIS Screws Header

Product ID: D3

Send Inquiry
Standards(d) Size(D) Tolerance(D) Size(H) Tolerance(H) R Size(a) Tolerance(a) Size(b) Tolerance(b) Min(R) Max(M) Max Q(16) Min Q(16) Punch Code
M2 4.5 - 1.2 - 3 0.6 - 0.6 - 0.1 2.2 1.01 0.65 JMT M2.0
(M2.2) 5 0 1.3 - 3.2 0.6 - 0.65 - 0.1 2.3 1.11 0.75 JMT M2.2
*(M2.3) 5.2 -0.4 1.4 +-0.1 3.4 0.6 - 0.7 +-0.1 0.1 2.4 1.21 0.85 JMT M2.3
M2.5 5.7 - 1.5 - 3.7 0.8 +0.15 0.75 - 0.1 2.5 1.32 1.95 JMT M2.5
*(M2.6) 5.9 - 1.6 - 3.9 0.8 0 0.8 - 0.1 2.6 1.42 1.05 JMT M2.6
M3 x 0.5 6.9 - 1.9 - 4.6 0.8 - 1.95 +-0.15 0.1 3.5 1.72 1.34 JMT M3.0
(M3.5) 8.1 0 2.2 - 5.4 1 - 1.1 +-0.15 0.1 4.0 1.83 1.30 JMT M3.5
M4 x 0.7 9.4 -0.5 2.5 +-0.15 6.1 1 - 1.25 +-0.2 0.2 4.3 2.13 1.60 JMT M4.0
(M4.5) 10.6 0 2.8 - 6.9 1 - 1.4 - 0.2 4.7 2.53 1.99 JMT M4.5
M5 x 0.8 11.8 -0.6 3.1 - 7.7 1.2 +0.2 1.6 +-0.25 0.2 5.0 2.83 2.29 JMT M5.0
M6 14 -0.7 3.7 +-0.2 9.1 1.2 0 1.9 +-0.3 0.25 6.2 2.86 2.31 JMT M6.0
