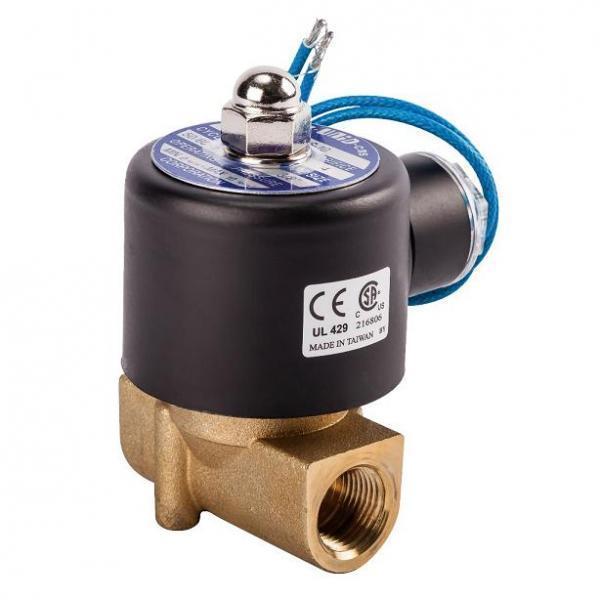

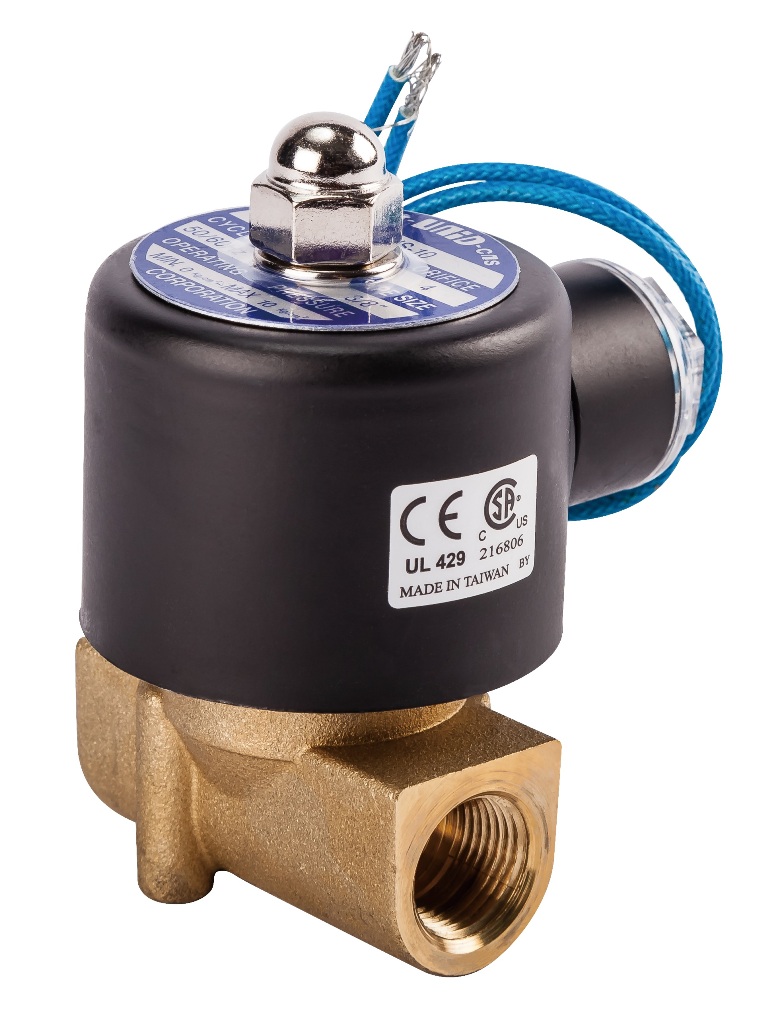

Solenoid Valve-Normally Closed Type

Product ID: US-6~10

Send Inquiry



 PRODUCT DESCRIPTION

.US series is direct-acting, conductive, and normally closed (NC) 2/2 way solenoid

    valve.

.Able to be operated directly without pressure

.Material PTFE is suitable for steam.

CAUTIONS:

.Before pipelining,the pipe line must be very clean without any contaminants or any other things not ought to be existed.

.To prolong the life time of the product, Y-line filter should be installed in the front end of solenoid valve.

.The temperature of steam should not over 185℃

.AC voltage tolerance:±10%;DC voltage tolerance:±1%

.It should be installed horizontally;vertical installation is not advisable.

Not Suitalbe For Fluid As Below:

.Liquid status when it is high temperature;solid status when it is cool.

.Corrosive fluid

.Viscosity over 50cst
