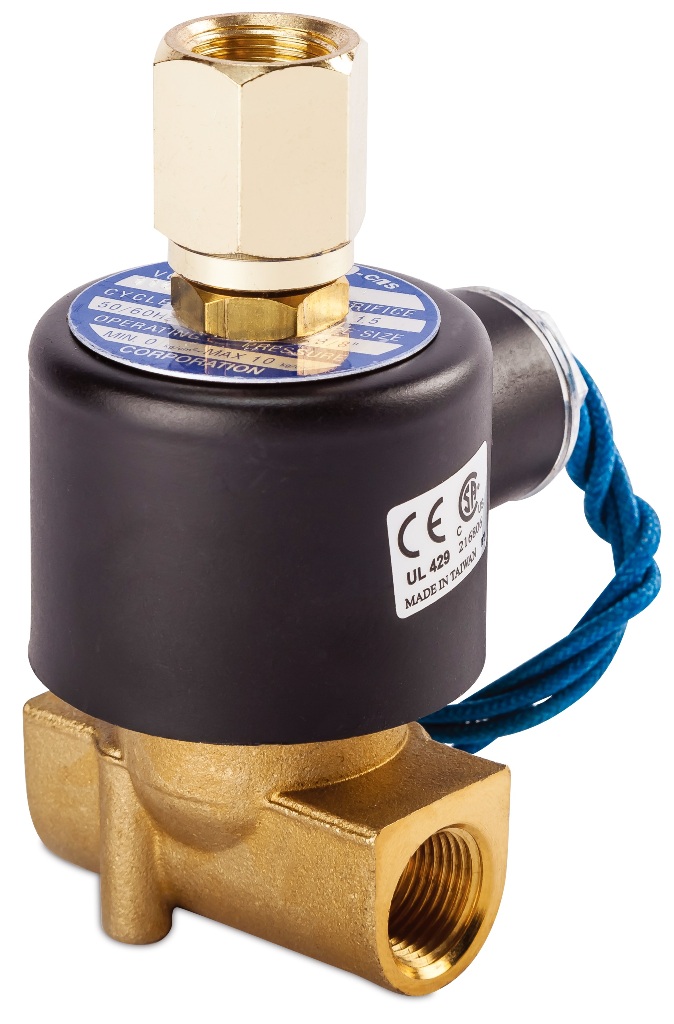

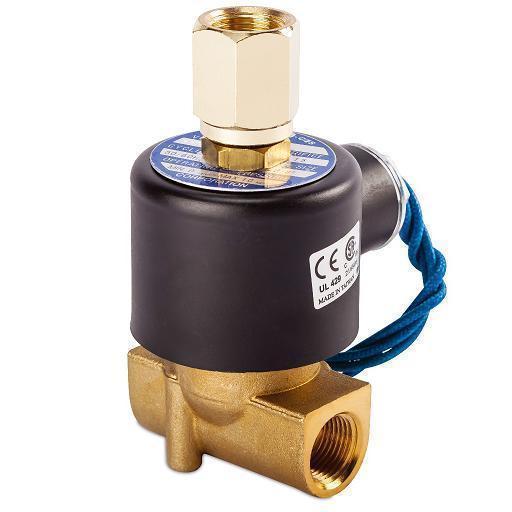

Solenoid Valve-Normally Closed Type

Product ID: UA-8~10

Send Inquiry



 PRODUCT DESCRIPTION

.UA series is direct-acting, conductive, and normally closed (NC) 3/2 way solenoid

    valve.

.Availability of fluid type:water, air, vacuum

.Able to be operated directly without pressure

.Applicable for exhausting facility, ex:Air cylinder after power-off

.Acceptable for customizeation-Viton (130℃) plug

CAUTIONS:

.Before pipelining, the pipe line must be very clean without any contaminants or any other things not ought to be existed.

.To prolong the life time of the product, Y-line filter should be installed in the front end of solenoid valve.

.AC voltage tolerance:±10%;DC voltage tolerance:±1%

.It should be installed horizontally;vertical installation is not advisable.

Not Suitalbe For Fluid As Below:

.Liquid status when it is high temperature;solid status when it is cool.

.Corrosive fluid

.Viscosity over 20cst
