Specifications

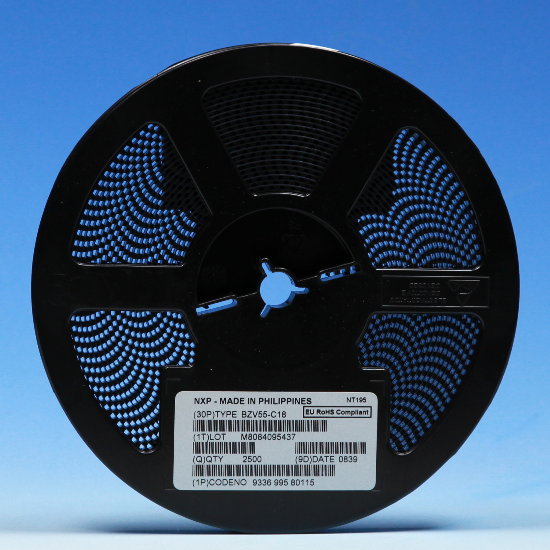

• Working Voltage: 18V• Forward Voltage(VF)(Max): 0.9V(IF = 10mA) • Forward Current(IF)(Max): 250mA• Zener Voltage Tolerance: ±5%• Zener Voltage(VZ)(Min): 16.8V• Zener Voltage(VZ)(Max): 19.1V• Reverse Current(IR)(Max): 50nA(VR = 0.7V)• Total Power Dissipation(Ptot)(Max): 500mW• Non-Repetitive Peak Reverse Power Dissipation(PZSM)(Max): 40mW• Diode Capacitance(Cd)(Max): 70pF(VR = 0V , f = 1.0MHz)• Non-Repetitive Peak Reverse Current(IZSM)(Max): 1.5A• Storage Temperature Range(Tstg): -65°C to +200°C• Operating Junction Temperature(TJ): -65°C to +200°C • Brand Name: NXP Semiconductors• BZV55 Series• Mounting Type: SMD(Surface-Mounted Device)• Package Type: SOD80C(SOD-80C)• Lead Count: 2• Part Number: BZV55-C18,115(2,500 units / reel) , BZV55-C18,135(10,000 units / reel)• SMD Zener Diodes Mass Stock• We supply various electronic components and welcome your inquiries

Features

• Lead-Free Type • RoHS Compliant • Non-repetitive peak reverse power dissipation: ≤ 40W• Total power dissipation: ≤ 500mW• Two tolerance series: ±2% and ±5%• Wide working voltage range: nominal 2.4V to 75V (E24 range)• Low differential resistance• Small hermetically sealed glass SMD package
